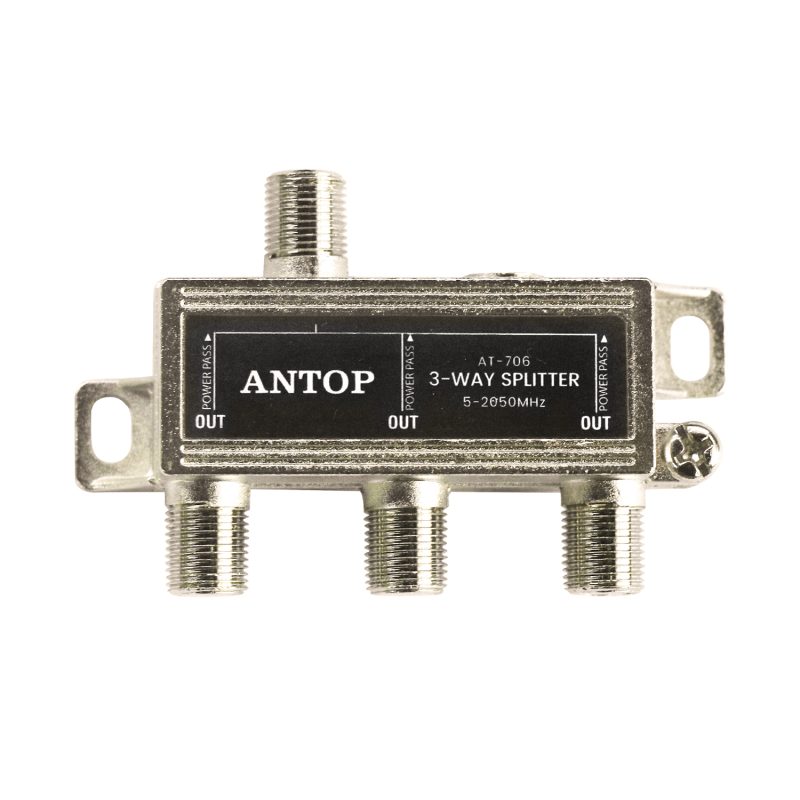

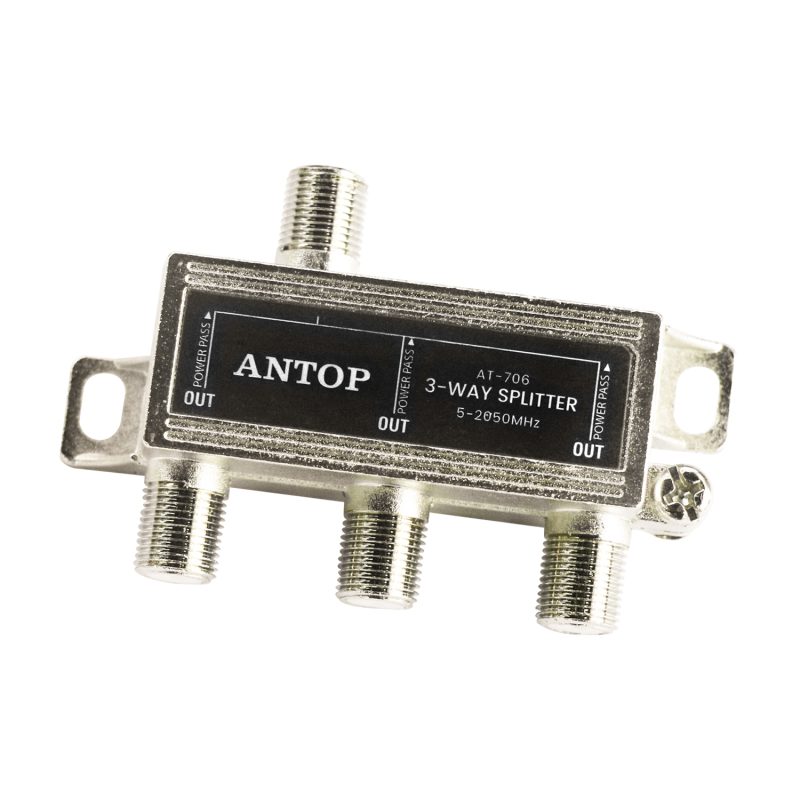

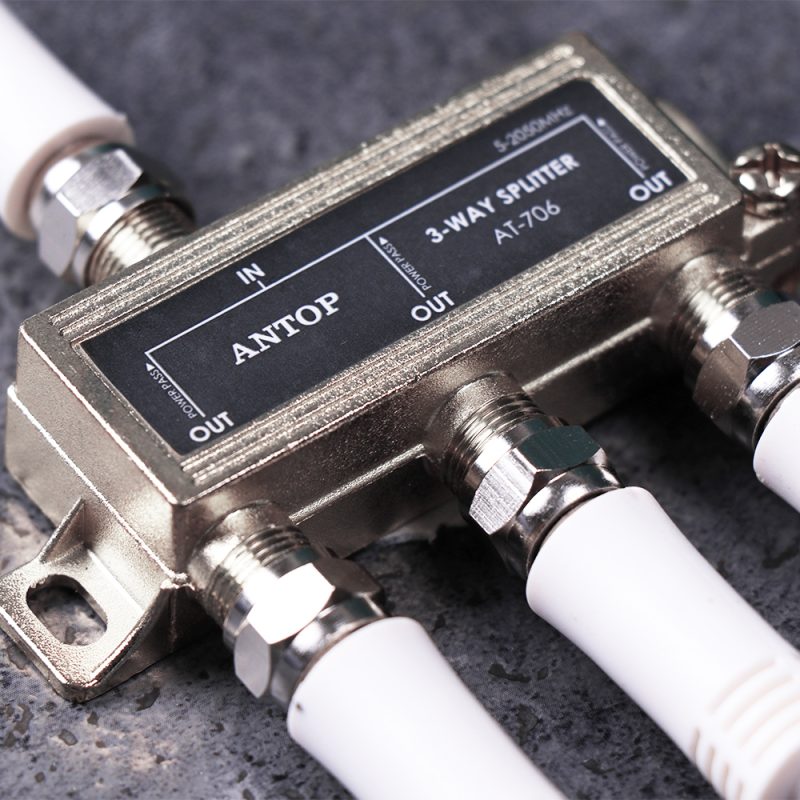

Antop RF Splitter AT-706 3-way 2GHz

$18.99

Splits signal to up to 3 TVs
High quality zinc die-cast housing nickel plated chassis
Low Insertion Loss
High Return Loss
Lower Noise
Higher Signal Quality
Compatible with Satellite / TV RF Signals
Color of items and packaging may vary

Buy On Amazon
SKU: AT-706 Category: Tags: , ,

Introduction

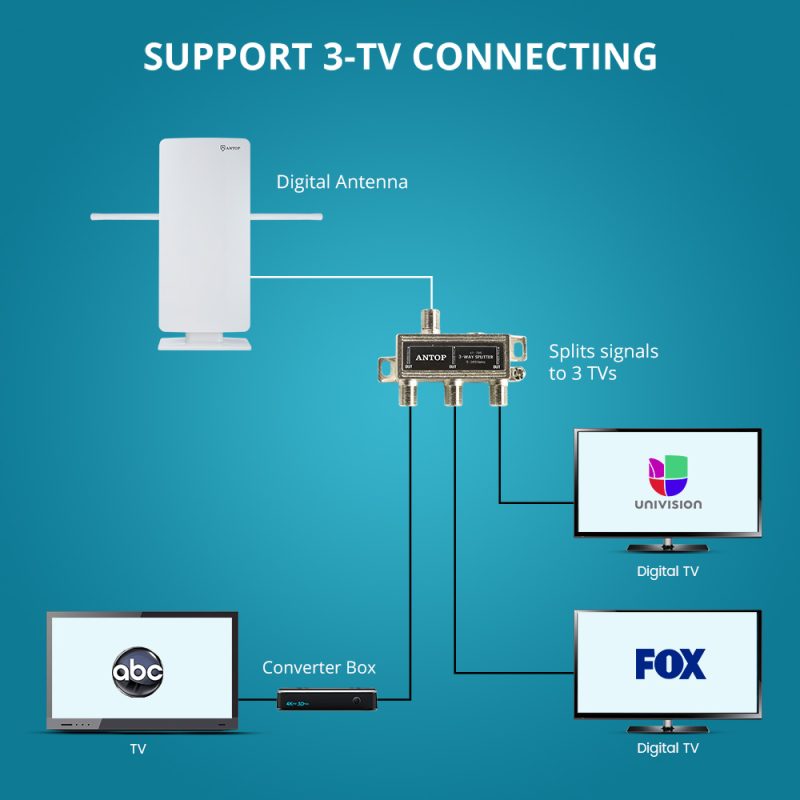

The Antop 3-ways Splitter AT-706 splits a single incoming coaxial signal, such as satellite signal, over-the-air HD (digital TV) antenna signal, into three outgoing signals.

High quality die-cast housing nickel plated chassis for maximum signal transfer, corrosion resistance, and reliable connectivity.

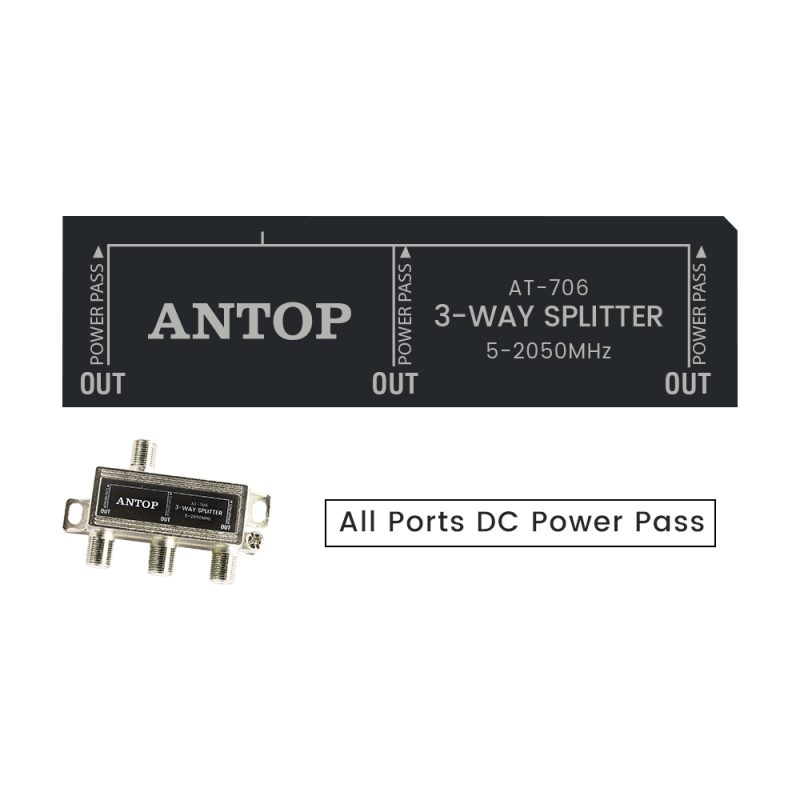

All ports DC Power Passing enables DC power from all outputs to pass the power to the input (or in the opposite direction). Thus all satellite receivers can supply LNB power, while all amplified outdoor antenna or masthead amplifier can be powered from the interior power supply devices. Care should be taken to ensure the input of a receiver will not be damaged by power from another receiver. Reverse powering protection is provided in many receivers and systems.

Product Information

  • All ports female F connector 75 Ohm
  • All ports DC power pass
Specification
Usage

Indoor

Screening factor

5-300MHz≥75dB,300-470MHz≥75dB, 470-1000MHz≥65dB,1000-2050MHz≥55dB

Insertion Loss

6.5dB(5-47MHz),7.5dB (47-1000MHz), 8.5dB (1000-1750MHz), 9.5dB (1750-2050MHz)

Isolation

20dB (5-2050MHz)

Return Loss

10dB (5-47MHz),

Receiving Range

TV/SAT

Impedance

75Ω

All Port DC Pass

24V/200mA (max.)

Color

Platinum

Product Series

Splitters

UPC

856134006254

Consumer Packaging
Weight 0.15 lbs
Dimensions 4.78 × 3.26 × 0.9 in
