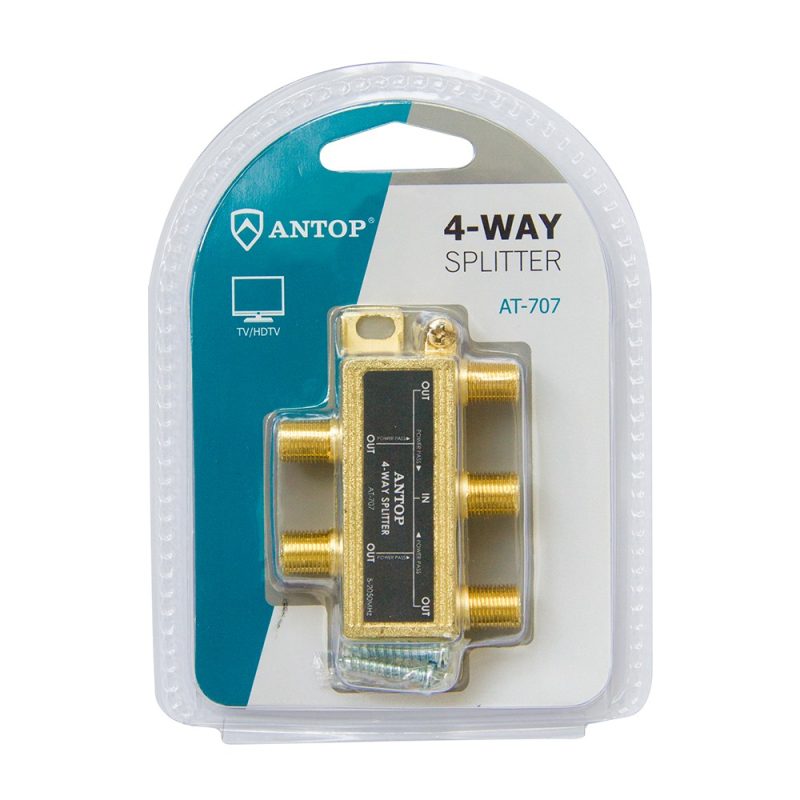

ANTOP RF Splitter AT-707 4-way 2GHz

$21.99 $13.99

Free Ground Shipping
30 Day Money Back Guarantee
1 Year Parts & Labor Warranty

Splits signal to up to 4 TVs
18K Gold-Plated Chassis
Low Insertion Loss
High Return Loss
Lower Noise
Higher Signal Quality
Compatible with Satellite / TV RF Signals

81 in stock (can be backordered)

SKU: AT-707

    Introduction

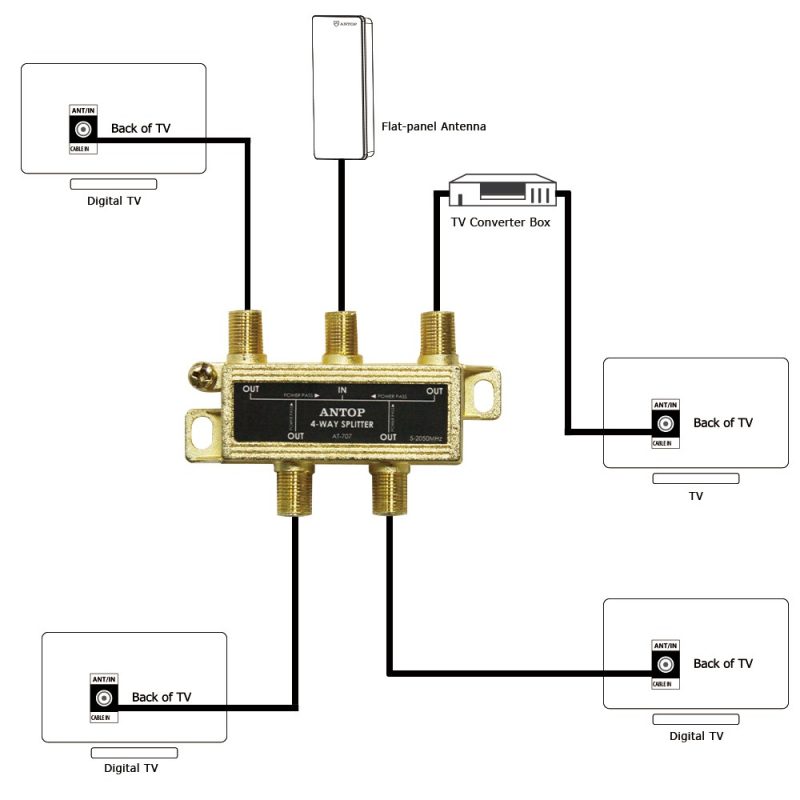

    The ANTOP 4-ways Splitter AT-707 splits a single incoming coaxial signal, such as satellite signal, over-the-air HD (digital TV) antenna signal, into four outgoing signals.

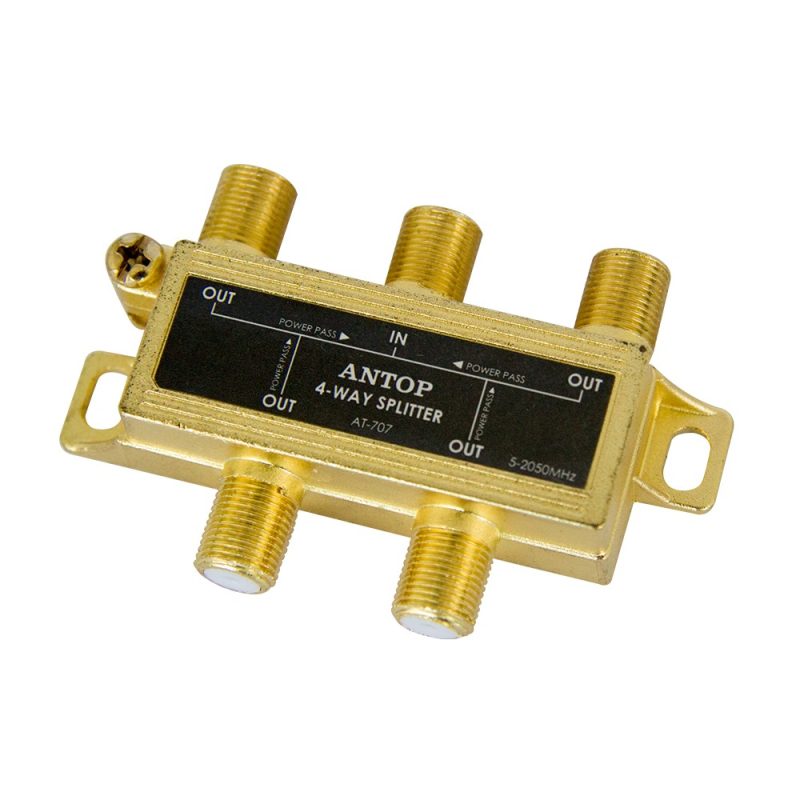

    Precision zinc die-cast with 18K gold-plated chassis for maximum signal transfer, corrosion resistance, and reliable connectivity.

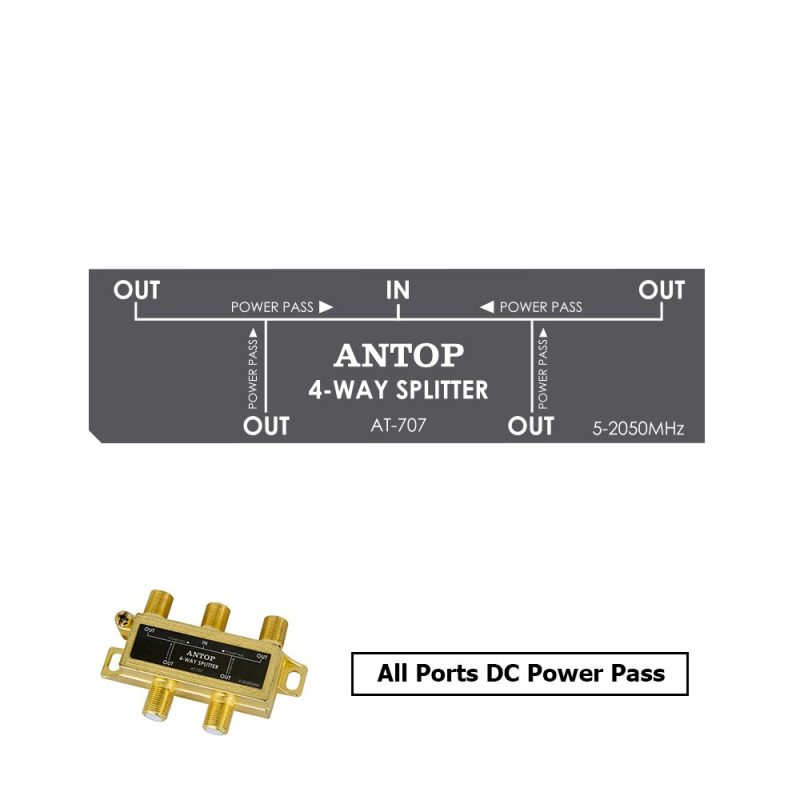

    All ports DC Power Passing enables DC power from all outputs to pass the power to the input (or in the opposite direction). Thus all satellite receivers can supply LNB power, while all amplified outdoor antenna or masthead amplifier can be powered from the interior power supply devices. Care should be taken to ensure the input of a receiver will not be damaged by power from another receiver. Reverse powering protection is provided in many receivers and systems.

    Product Information

    • All ports female F connector 75 Ohm
    • All ports DC power pass

    Specification

    Specification

    Usage

    Indoor

    Screening factor

    5-300MHz≥75dB,300-470MHz≥75dB, 470-1000MHz≥65dB,1000-2050MHz≥55dB

    Insertion Loss

    4dB (5-47MHz), 4.5dB (47-1000MHz),5dB (1000-1750MHz),6dB (1750-2050MHz)

    Isolation

    20dB (5-47MHz),22dB (47-2050MHz)

    Return Loss

    10dB (5-47MHz),, 12dB (5-2050MHz)

    Receiving Range

    TV/SAT

    Impedance

    75Ω

    All Port DC Pass

    24V/200mA (max.)

    Color

    Golden

    Product Series

    Splitter

    UPC

    856134006261

    Packing

    Weight0.15 lbs
    Dimensions4.78 × 3.26 × 0.91 in
