ANTOP RF Splitter AT-709 8-way 2GHz

$32.99

Splits signal to up to 8 TVs
18K Gold-Plated Chassis
Low Insertion Loss
High Return Loss
Lower Noise
Higher Signal Quality
Compatible with Satellite / TV RF Signals

In stock

SKU: AT-709 Category: Tags: ,

Product Description

Introduction

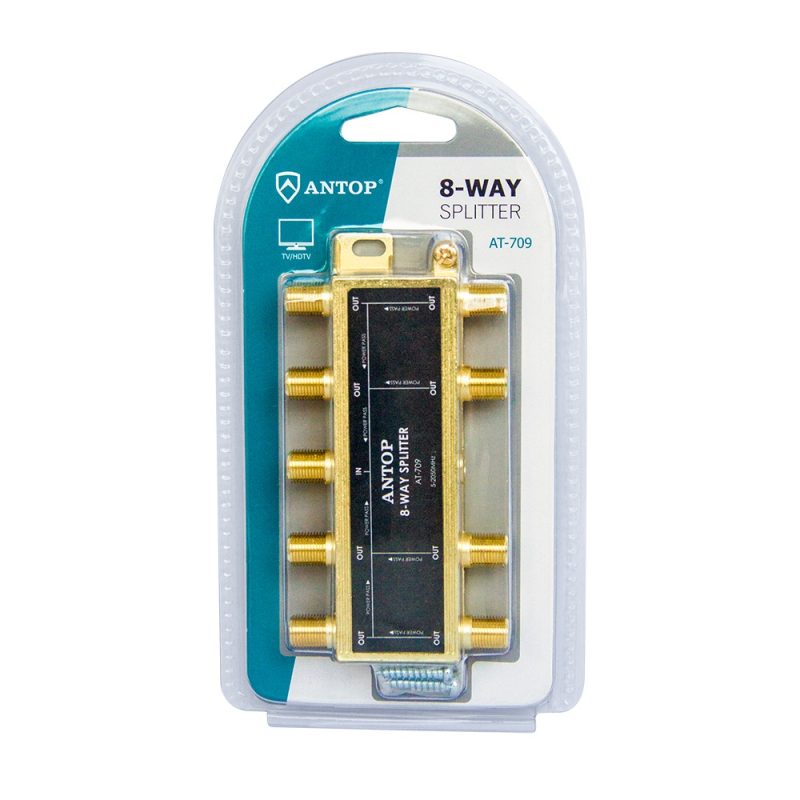

The ANTOP 8-ways Splitter AT-709 splits a single incoming coaxial signal, such as satellite signal, over-the-air HD (digital TV) antenna signal, into eight outgoing signals.

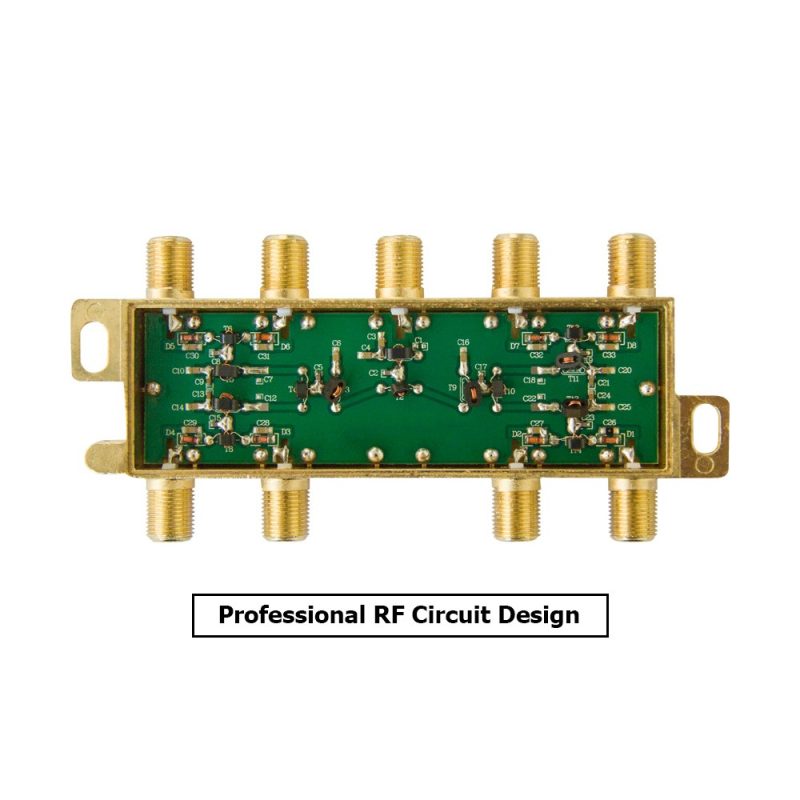

Precision zinc die-cast with 18K gold-plated chassis for maximum signal transfer, corrosion resistance, and reliable connectivity.

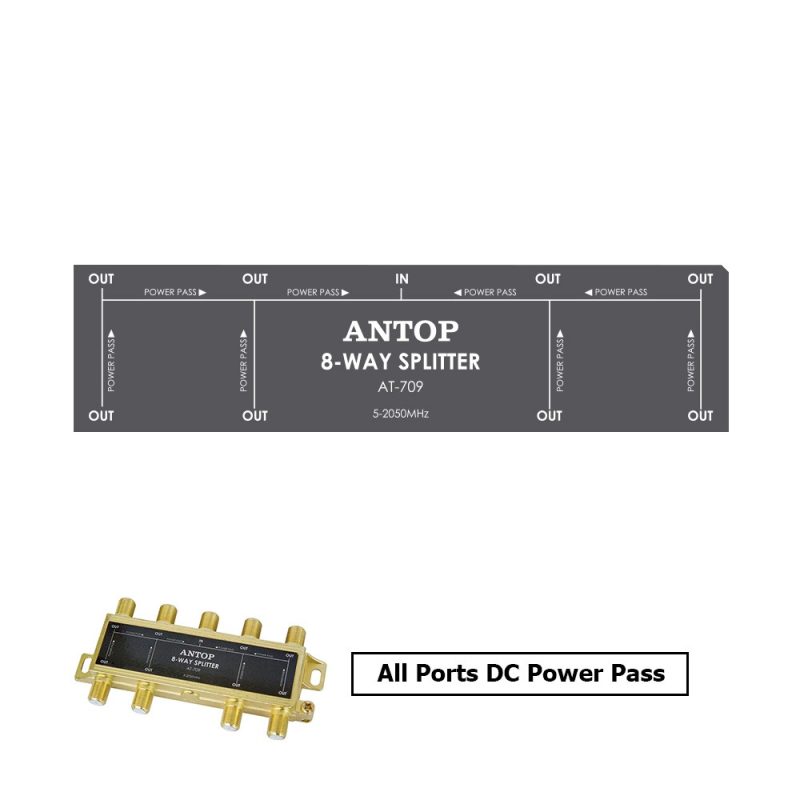

All ports DC Power Passing enables DC power from all outputs to pass the power to the input (or in the opposite direction). Thus all satellite receivers can supply LNB power, while all amplified outdoor antenna or masthead amplifier can be powered from the interior power supply devices. Care should be taken to ensure the input of a receiver will not be damaged by power from another receiver. Reverse powering protection is provided in many receivers and systems.

Product Information

  • All ports female F connector 75 Ohm
  • All ports DC power pass

Specification

Specification
Usage

Indoor

Screening factor

5-300MHz≥75dB,300-470MHz≥75dB, 470-1000MHz≥65dB,1000-2050MHz≥55dB

Insertion Loss

11.5dB (5-47MHz),13dB (47-1000MHz),14dB (1000-1750MHz),15dB (1750-2050MHz)

Isolation

20dB (5-2050MHz)

Return Loss

10dB (5-47MHz),, 12dB (5-2050MHz)

Receiving Range

TV/SAT

Impedance

75Ω

All Port DC Pass

24V/200mA (max.)

Color

Golden

Product Series

Splitters

UPC

856134006285

Packing
Weight 0.25 lbs
Dimensions 6.55 × 3.26 × 0.91 in
