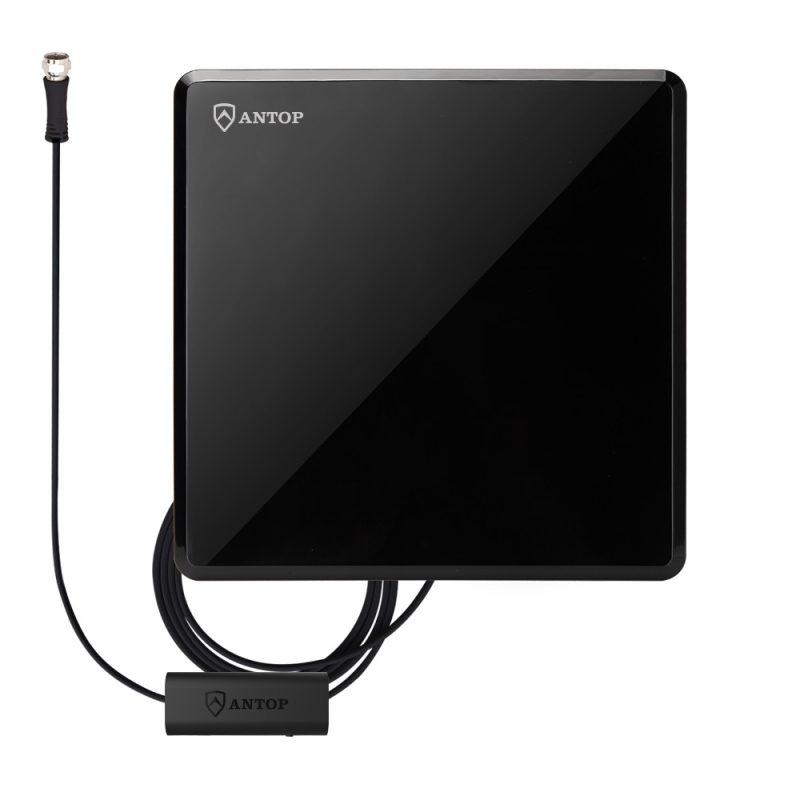

Antop Flat Panel AT-207B Indoor HDTV Antenna | Smartpass Amplified

$14.99

• Glossy-black finish
• Smartpass technology amplifies range up to 65 miles
• 4G LTE Filter: blocks unwanted 3G and 4G signals
• Omni-directional reception for moderate signal strength areas

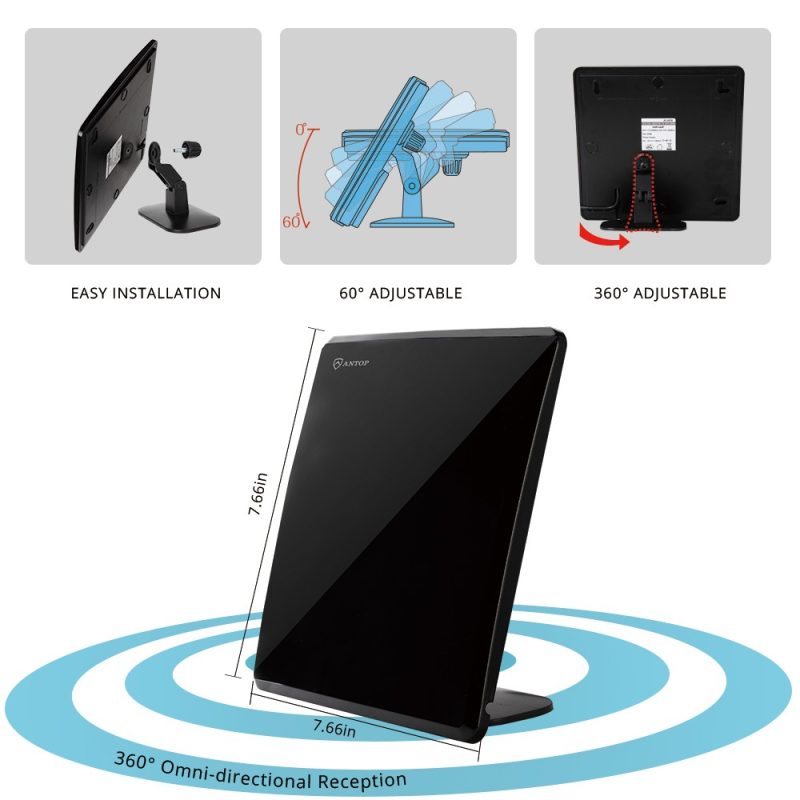

• Multiple set-up options: table, wall, window
• Compact size: 7.66 x 7.66 x .80 inch

Introduction

The Antop Flat-Panel AT-207B designed in Piano Black is aesthetically pleasing and suitable to match a wide range of home décor styles. Its compact size allows you to position the antenna anywhere in your home. The AT-207B supports HDTV, 1080P TV and 4K ULTRA HD and is compatible with TV converter boxes or digital TVs.

The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area. With the Antop AT-207B, there is no monthly fee and no need to subscribe. Just plug into a TV, scan the channels, and then enjoy your TV shows!

Antop Technology:

smartpass amplifier1) Smartpass Amplifier, exclusive Antop technology, balances reception range.

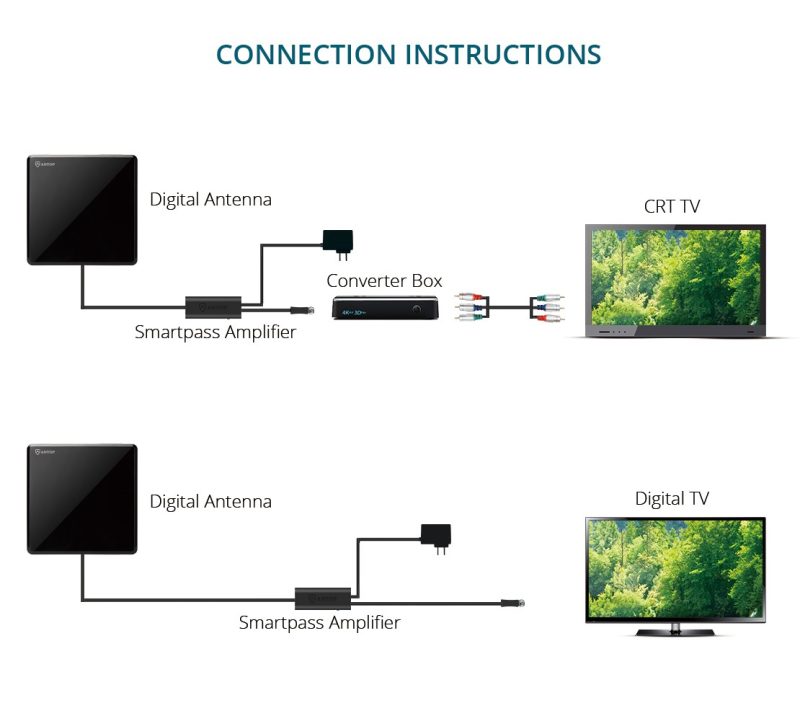

The Smartpass Amplifier’s all-in-one design allows easier connection, delivers correct balance between short and long range reception. It must be powered in order to function. Push the smart switch On or Off and select the switching with which more channels are received.

4G LTE2) 4G LTE Filter, blocks 3G and 4G wireless signals for noise-free digital reception.

By following the simple tips below, you can enjoy FREE TV with Antop Antenna:

– Re-scan the channels after each switching of the Smartpass Amplifier.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high power consumption devices to avoid interference.

NOTE: Antenna effectiveness is influenced by the distance from signal origination point, station signal strength level, building construction, antenna positioning, reflections from nearby structures and any power consumption sources. The amount of free over-the-air channels you can receive will vary by area and antenna selection, check signal availability at Antop Signalmaps.

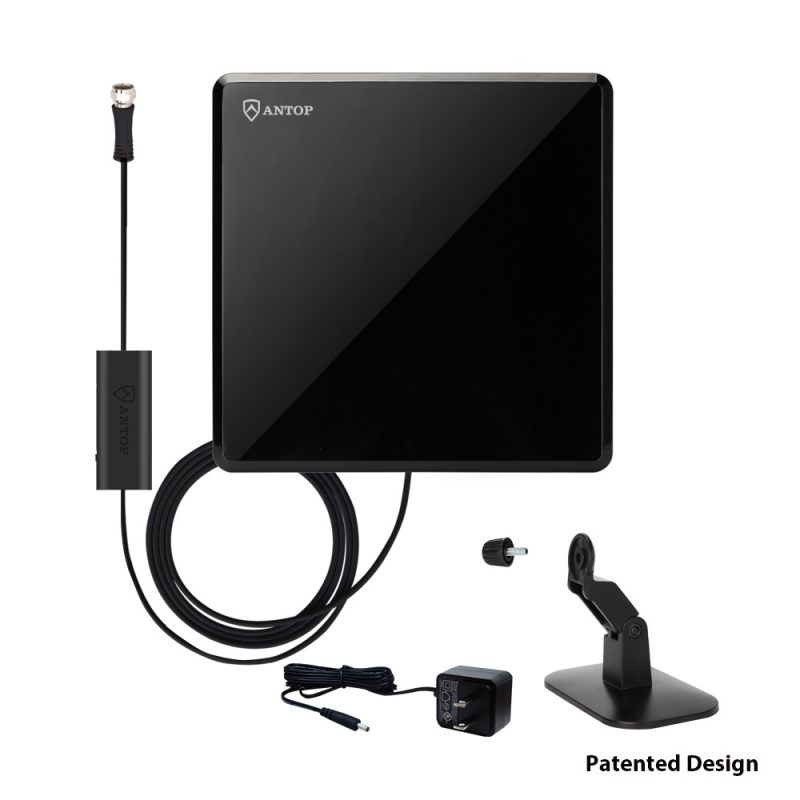

What’s in the box

– AT-207B FLAT PANEL Smartpass Amplified Digital Indoor Antenna
– AC/DC Power Adapter
– Stand
– 10ft Coaxial Cable
– Instruction/User Manual

Specification
Usage

Indoor, Apartment, Flat, Condominium

Signal Strength

Moderate Signal Areas

Received Band

UHF

Amplification

Smartpass Amplified

Reception Pattern

Omni-directional

Frequency Range

174-230MHz, 470-700MHz

Gain

Switch-OFF: 5-7dB; Switch-ON: 19dB

Max Output level

100dBuV

Noise Figure

≤2dB

Impedance

75Ω

Power Supply

DC5V via power adapter

Cable Length

10ft

Product Series

Panel

Working Temperature Range

-68 to 140 ℉

Color

Black

UPC

856134006209

Consumer Packaging
Weight 1.43 lbs
Dimensions 8.7 × 2.6 × 9 in
ANTOP User Manual
