Antop AT-500SBS HD Smart Bar: HDTV FM Amplified Antenna with Smart Boost System, 80 mile range, White

$89.98

• Features Antop’s exclusive Smart Boost System
• Up to 80-miles signal range
• Connects TWO devices simultaneously

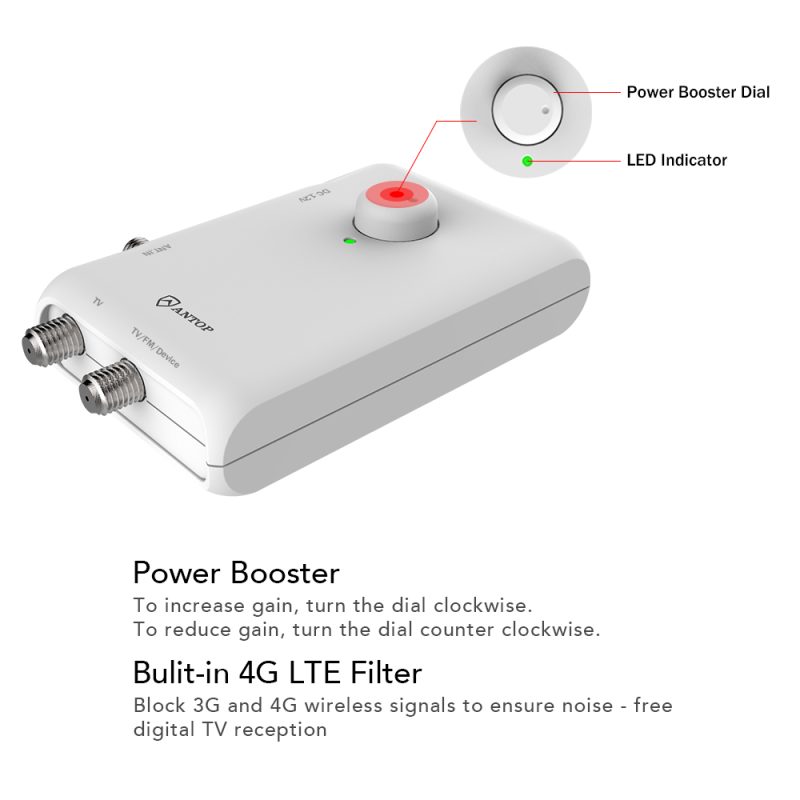

• Built-in adjustment dial delivers optimal antenna reception
• Built-in 4G LTE Filter for less picture pixelation
• Multi-Directional reception pattern
• Includes integrated FM antenna
• Compact and sleek BAR design
Color: White
Product Status: New
  • New
AT-500SBS Description
AT-500SBS Description
Specification
Amplification

Smart Boost System

Color

White

Frequency Range

47-230MHz, 470-700MHz

Insertion Loss

4.8dB

Power In

DC 12V

Power Out

DC 11.7V

Impedance

75Ω

Regulation

0~15dB

Receiving Range

VHF/UHF

Reception Range

60~80 miles

Reception Pattern

Multi-directional

Gain

7dB-22dB

Max Output level

100dBuV Max

Noise Figure

≤3dB

Power Supply

DC12V via power adapter

Product Series

Smart Boost System, Bar Antennas

UPC

853042007366

Product Status

New

Consumer Packaging
Weight 3.48 lbs
Dimensions 7.95 × 3.82 × 29.65 in
ANTOP User Manual
Customer Reviews

4.7 out of 5 stars

1 review

Let us know what you think...

What others are saying
  1. George Martin

    George Martin

    It works so well. It was very easy for new to set up. In fact it works better, we are using this from now on. Great value for money.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Mark.R

    Mark.R

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. RedMittens

    RedMittens

    I purchased this antenna after research and reading reviews. Haven’t received Antenna yet, will update review after connection and use.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  4. Donald

    Donald

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  5. Barry

    Barry

    Cut the cord to cable, thanks

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  6. Erin Daly

    Erin Daly

    I purchased this one hoping to avoid this and this stronger antenna did the job. I set it up in 5 minutes and the signal is strong on all channels in the same location.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  7. DL

    DL

    Spent $100 on an antenna that works just like the $30 from Wal-Mart. Pretty disappointed.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  8. TJ

    TJ

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  9. Gr8lite

    Gr8lite

    This is a nice clean indoor antenna with great UHF reception. Fair with VFH in my trouble area. Good range. I would recommend for anyone not looking for something with higher specs.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  10. Cathy

    Cathy

    I am cutting the cable and this is the best over the air antenna I have ever had! It brings in exceptional reception. I am about 50 miles away from all the tv towers. The only issue I had was trying to mark the holes in the right place to hang. A templet would be a very nice added touch to have with the packaging. I am 68 years old trying to hang it over a window and had to measure where the screws needed to be placed. I drilled more holes due to it being hard to measure where they should go so that is why I am big on wanting a templet, at least for the senior citizens. Ha Ha Oh ya, very, very fast shipping and package arrived in good shape.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  11. Kenman1

    Kenman1

    This is a great antenna and I really get great reception with it

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  12. DAVID IN SOUTH CAROLINA

    DAVID IN SOUTH CAROLINA

    I asked a question by email on your website. You never responded. The antenna works OK but not as good as I expected. I wanted your advice but was left out in the cold to try to figure it out by myself.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  13. Pat

    Pat

    Finally found an antenna that gets the OTA stations. Our HOA doesn’t allow outdoor antennas and we tried different indoor antennas that didn’t get every major networks.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  14. Tommy Boy

    Tommy Boy

    I bought this particular antenna a year ago from this site to get rid of cable bill and this has been money well spent. I get over 80 channels and the pictures are sharp without pixelating. Definitely will buy another one for my bedroom.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  15. Kevin

    Kevin

    Small enough to sit behind TV. Getting about 36 HD channels for free. Goodbye monthly bill.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  16. Leon Fowler

    Leon Fowler

    Worked great. Easily 92 to 98% signal if placed and pointed in the right direction.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  17. Melissa

    Melissa

    Worked great. Easily 92 to 100% signal if mounted and pointed in the right direction.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  18. David Moreland

    David Moreland

    This antenna was very easy to install and picture quality is great. I would definitely purchase again.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  19. Christine

    Christine

    My house not far from broadcast towers, but an apartment building in the way makes reception come and go. Installed this antenna, set to the lower gain setting, and now get consistently good reception of all our local stations.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  20. Sherry Williams

    Amazing picture

    Sherry Williams

    I cut the cable and very happy with all the channels I get with this! and picture quality is great!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×
