Antop AT-500SBS HD Smart Bar: HDTV FM Amplified Antenna with Smart Boost System, 80 mile range, White
$89.98

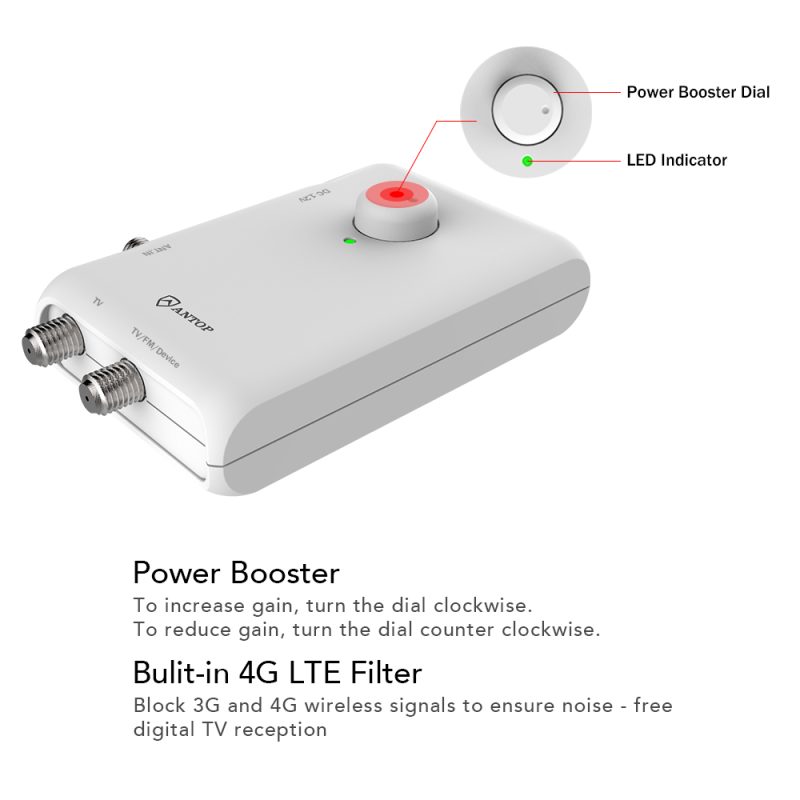

• Features Antop’s exclusive Smart Boost System
• Up to 80-miles signal range
• Connects TWO devices simultaneously
• Built-in adjustment dial delivers optimal antenna reception
• Built-in 4G LTE Filter for less picture pixelation
• Multi-Directional reception pattern
• Includes integrated FM antenna
• Compact and sleek BAR design
| Color: White |
|
| Product Status: New |
Specification | |
| Amplification | Smart Boost System |
|---|---|
| Color | White |
| Frequency Range | 47-230MHz, 470-700MHz |
| Insertion Loss | 4.8dB |
| Power In | DC 12V |
| Power Out | DC 11.7V |
| Impedance | 75Ω |
| Regulation | 0~15dB |
| Receiving Range | VHF/UHF |
| Reception Range | 60~80 miles |
| Reception Pattern | Multi-directional |
| Gain | 7dB-22dB |
| Max Output level | 100dBuV Max |
| Noise Figure | ≤3dB |
| Power Supply | DC12V via power adapter |
| Product Series | Smart Boost System, Bar Antennas |
| UPC | 853042007366 |
| Product Status | New |
Consumer Packaging | |
| Weight | 3.48 lbs |
|---|---|
| Dimensions | 7.95 × 3.82 × 29.65 in |
