Antop WING AT-404B Outdoor/HDTV Antenna | Smartpass Amplified

$49.99

• Weather resistant finish
• VHF enhanced
• Smartpass technology amplifies range up to 65 miles
• 4G LTE Filter: blocks unwanted 3G and 4G signals
• Multi-directional reception for weak/moderate signal strength areas
• Easy home exterior installation: wall, roof, balcony
• Size: 35.06 x 4.65 x 1.38 inches

Product Status: New

Introduction

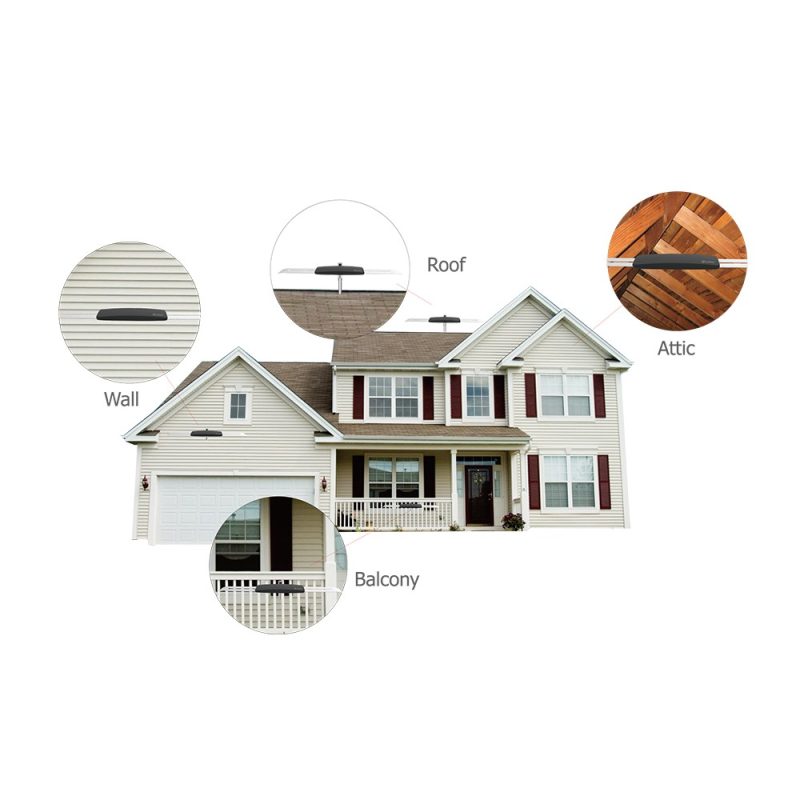

The Antop outdoor TV antenna, Wing AT-404B panel design is aesthetically pleasing and suitable to match a wide range of home exterior styles. The Multi-directional reception, UV coating and weather resistant finish and creative panel design, allow you to install your AT-404B antenna in various locations around the exterior of your home: wall, roof, balcony. It is also suitable for indoor use in an Roof top or placed on a table top. The AT-404B supports HDTV, 1080P TV and 4K ULTRA HD and is compatible with TV converter boxes or digital TVs.

The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area. With the Antop AT-404B, there is no monthly fee and no need to subscribe. Just plug into a TV, scan the channels, and then enjoy your TV shows!

Antop’s New Generation Digital Technology

smartpass amplifier1) Smartpass Amplifier, exclusive Antop technology, balances reception range.

2) 4G LTE Filter: built into all Antop amplified antennas, blocks 3G and 4G wireless signals for noise-free digital reception.
3) High Gain reception technology, shielded for minimum interference.
4) Durable exterior, waterproof design with UV coating.
5) Supports VHF & UHF digital signals.
6) Mounting accessory options.

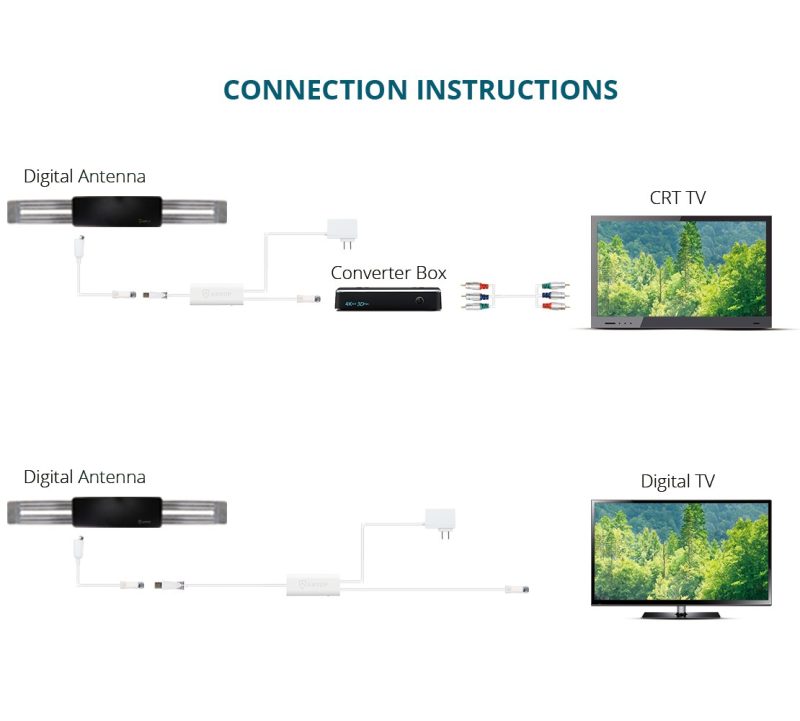

By following the simple tips below, you can enjoy FREE TV with your Antop Antenna:

– Re-scan the channels after each switching of the Smart Switch.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high power consumption devices to avoid interference.

NOTE: Antenna effectiveness is influenced by the distance from signal origination point, station signal strength, antenna positioning, reflections from nearby structures and any power consumption sources. THE AMOUNT OF FREE OVER-THE-AIR CHANNELS YOU CAN RECEIVE WILL VARY BY AREA AND ANTENNA SELECTION, CHECK SIGNAL AVAILABILITY AT Antop Signalmaps.

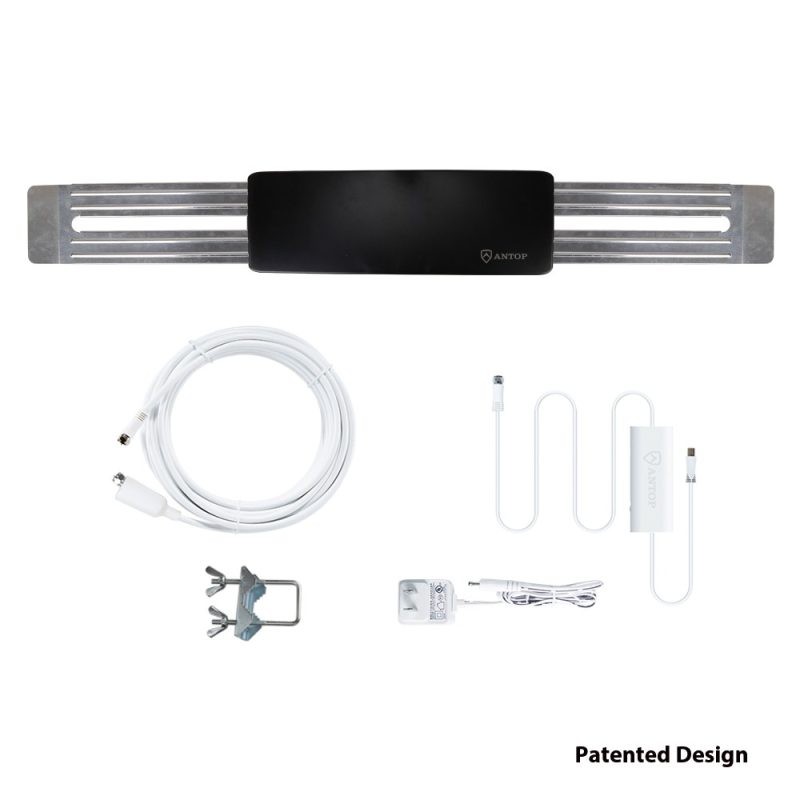

What’s in the box

– AT-404B WING Smartpass Amplified Digital Outdoor/Roof top TV Antenna
– Power Inserter with Smart Switch
– AC/DC Power Adapter
– Roof top Stand
– 33ft Coaxial Cable

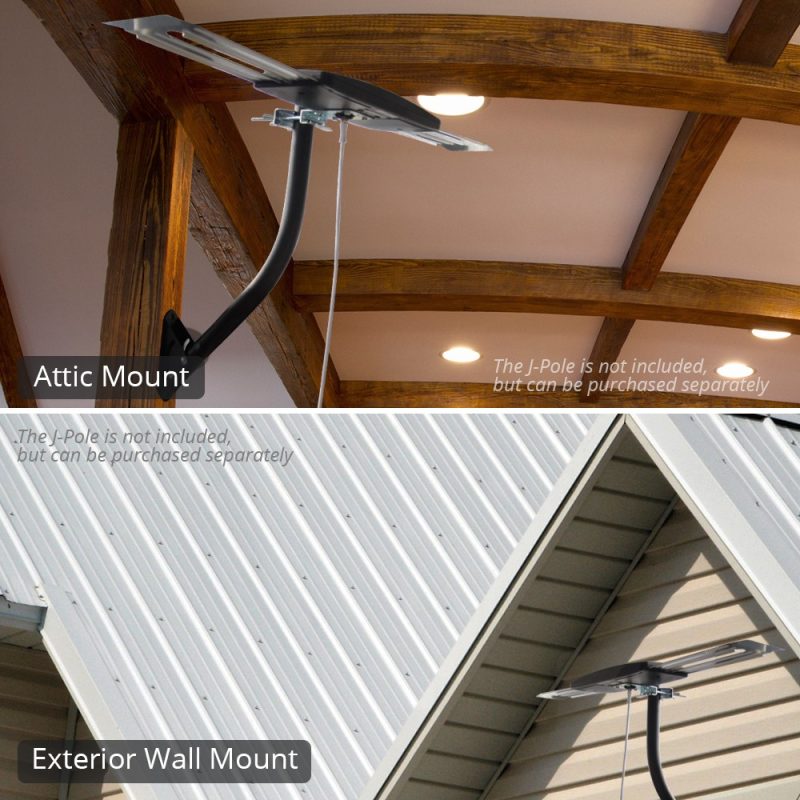

– Wall/Pole Mounting Kits
– Instruction/User Manual
– Instrucciones de Instalación en Español

Specification
Usage

Outdoor, Attic, RV

Signal Strength

Weak Signal Areas

Received Band

HI-V, LO-V, UHF

Amplification

Smartpass Amplified

Frequency Range

87.5-230MHz, 470-700MHz

Gain

Switch-OFF: 5-7dB; Switch-ON: 25dB

Max Output level

100dBuV

Noise Figure

≤3dB

Power Supply

DC12V via power adapter

Cable Length

33ft

Product Series

Wing/Butterfly

Working Temperature Range

-104 to 140 ℉

Product Status

New

Wind Figures

6 mile/h = 0.10N ; 10 mile/h = 0.36N

Color

Black

UPC

856134006155

Consumer Packaging
Weight 3.3 lbs
Dimensions 5.43 × 2.48 × 22.83 in
ANTOP User Manual
Customer Reviews

4.25 out of 5 stars

4 reviews

Let us know what you think...

What others are saying
  1. Professor Jim

    Professor Jim

    I was underwhelmed. Antenna works but still could not capture the difficult channels in my area.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Eric

    Not Bad for 56 Miles Out

    Eric

    I bought this antenna to put on my roof (30ft). The first night was crystal clear and I was able to pull in 16 stations from my front porch. I am near large trees and in a valley so I was impressed. I am even able to pull in signals 80 MILES AWAY! That only happens every now and then though. Since I am in a fringe area some of my signals are hit or miss, but for such a small antenna I am impressed. This is worth the money if your within 60 miles and can get it on the roof.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Omono

    Setup was a breeze.

    Omono

    Setup was a breeze. It takes me ten minutes to assemble, mount and connect. I placed this unit inside the house and it pulls signals from up to 45 miles from what I tested.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  4. Dezlaw

    Works great for both Low and Hi-VHF channels

    Dezlaw

    I live about 35 miles from the broadcast towers. It gives me crystal-clear HD reception. Recommend.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×
