Antop “Big Boy” AT-402B Outdoor HDTV Antenna | Smartpass Amplified

$123.99

• New Generation digital tech design: matches mechanical antennas
• UV coating, weather resistant finish
• Whole-house solution: Can feed multiple TVs
• Smartpass technology amplifies range from up to 70 miles
• 4G LTE Filter: blocks unwanted 3G and 4G signals
• Multi-directional reception for weak signal strength areas
• Easy home exterior installation: desktop, wall, roof, balcony
• Size: 4.53 X 5.12 X 23.82 inch

AT-402B outdoor antenna

Introduction

The Antop Flat-Panel AT-402B panel design is aesthetically pleasing and suitable to match a wide range of home exterior styles. The Multi-directional reception, UV coating and weather resistant finish and creative panel design, allow you to install your AT-402B antenna in various locations around the exterior of your home: roof, balcony. It is also suitable for indoor use in an attic or placed on a table top. The AT-402B supports HDTV, 1080P TV and 4K ULTRA HD and is compatible with TV converter boxes or digital TVs.

The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area. With the Antop AT-402B, there is no monthly fee and no need to subscribe. Just plug into a TV, scan the channels, and then enjoy your TV shows!

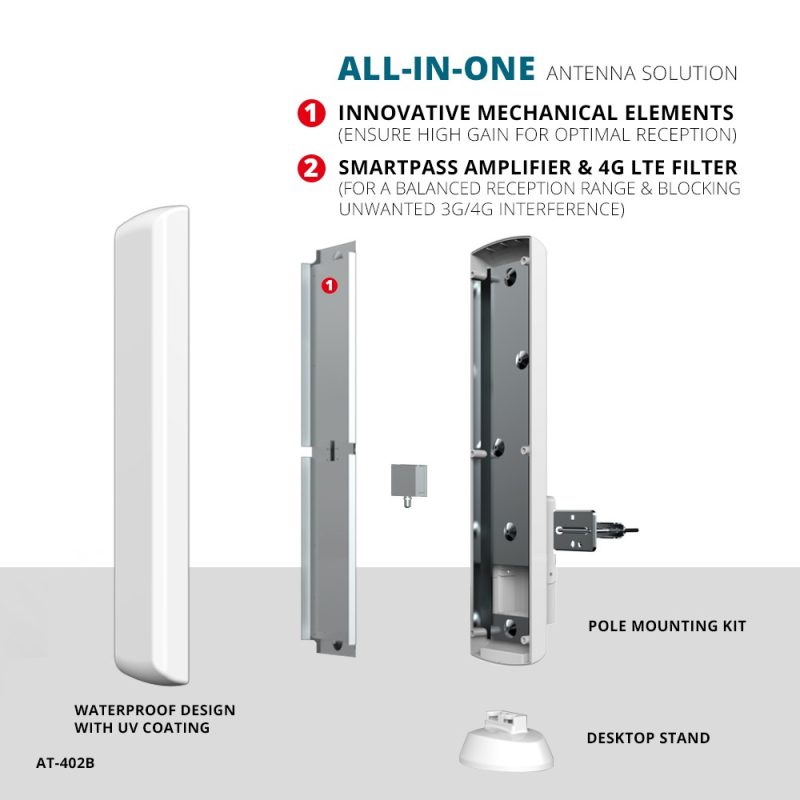

Antop’s New Generation Digital Technology

smartpass amplifier1) Smartpass Amplifier, exclusive Antop technology, balances reception range.

The Smartpass Amplifier’s all-in-one design allows easier connection, delivers correct balance between short and long range reception. It must be powered in order to function. Push the smart switch On or Off and select the switching with which more channels are received.
2) 4G LTE Filter: built into all Antop amplified antennas, blocks 3G and 4G wireless signals for noise-free digital reception.
3) High Gain reception technology, shielded for minimum interference.
4) Durable exterior, waterproof design with UV coating.
5) Supports VHF & UHF digital signals.
6) Mounting accessory options.

By following the simple tips below, you can enjoy FREE TV with your Antop Antenna:

– Re-scan the channels after each switching of the Smart Switch.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high power consumption devices to avoid interference.

NOTE: Antenna effectiveness is influenced by the distance from signal origination point, station signal strength level, building construction, antenna positioning, reflections from nearby structures and any power consumption sources. The amount of free over-the-air channels you can receive will vary by area and antenna selection, check signal availability at Antop Signalmaps.

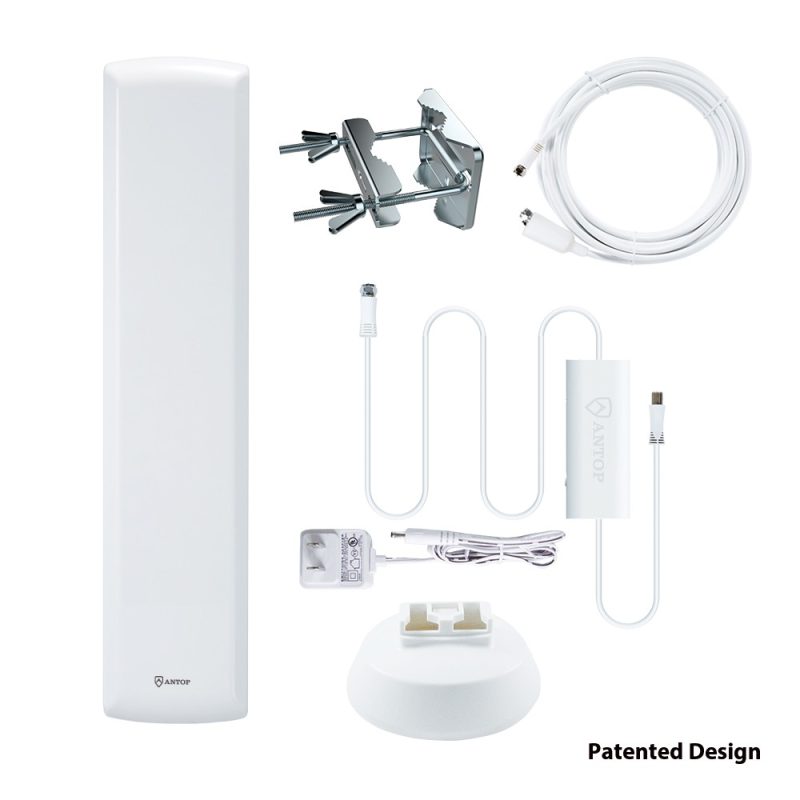

What’s in the box

– AT-402B FLAT PANEL Smartpass Amplified Digital Outdoor/Indoor TV Antenna
– Power Inserter with Smart Switch
– AC/DC Power Adapter

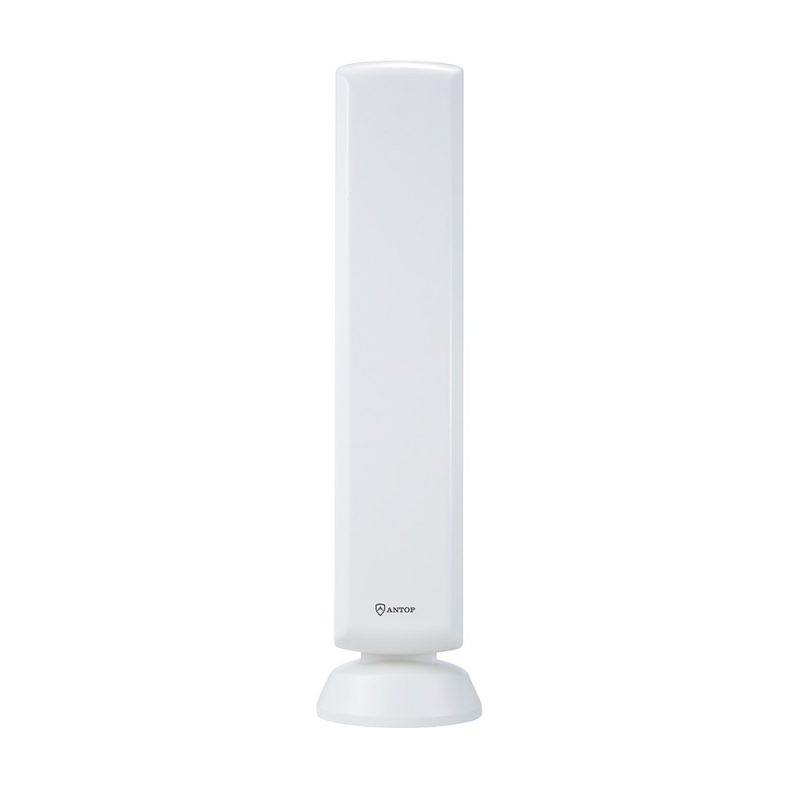

– Indoor Stand

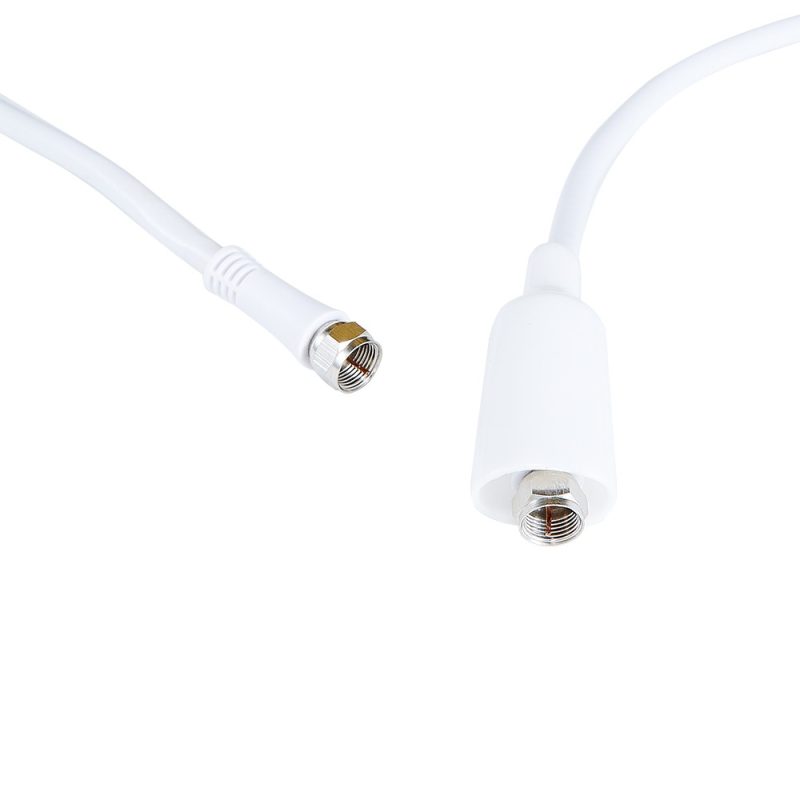

– 40ft Coaxial Cable

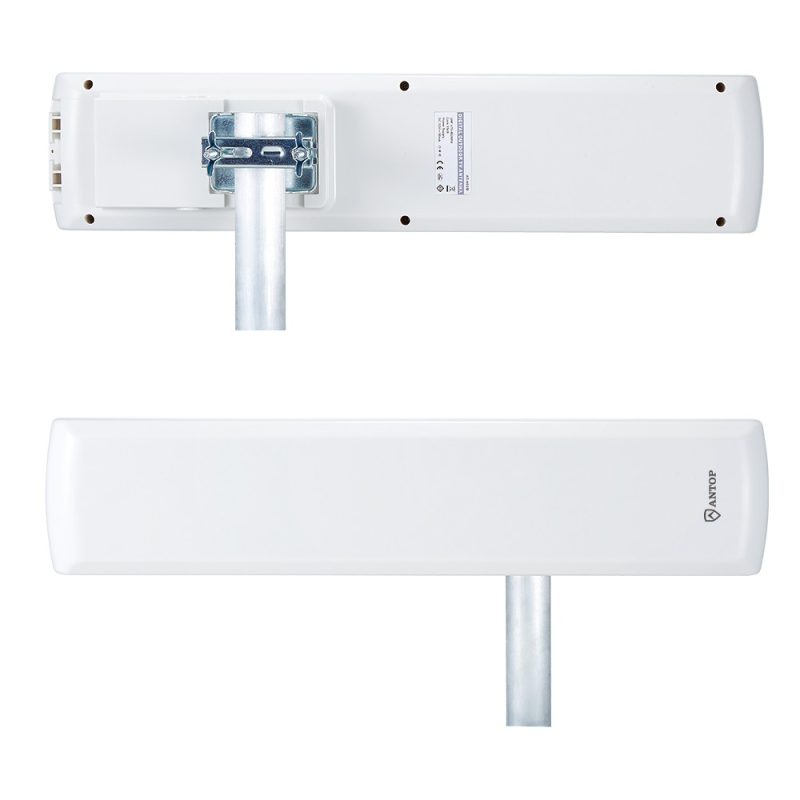

– Pole Mounting Kit
– Instruction/User Manual
– Instrucciones de Instalación en Español

Specification
Usage

Indoor, Outdoor, Attic, RV

Signal Strength

Weak Signal Areas

Received Band

UHF

Amplification

Smartpass Amplified

Frequency Range

87.5-230MHz, 470-700MHz

Gain

Switch-OFF: 12.5dB; Switch-ON: 29dB

Max Output level

100dBuV

Noise Figure

100dBuV Max

Impedance

75Ω

Power Supply

DC12V via power adapter

Cable Length

40ft

Product Series

"Big Boy"

Working Temperature Range

-104 to 140 ℉

Wind Figures

6 mile/h = 0.39N ; 10 mile/h = 1.41N

Color

White

UPC

856134006575

Consumer Packaging
Weight 6.01 lbs
Dimensions 6.93 × 5.75 × 26.77 in
ANTOP User Manual
