Antop WING AT-404 Outdoor HDTV Antenna
$49.99
• Weather resistant finish
• VHF enhanced
• Suitable for moderate signal strength areas
• Multi-directional reception pattern
• Reception range: Up to 45 miles

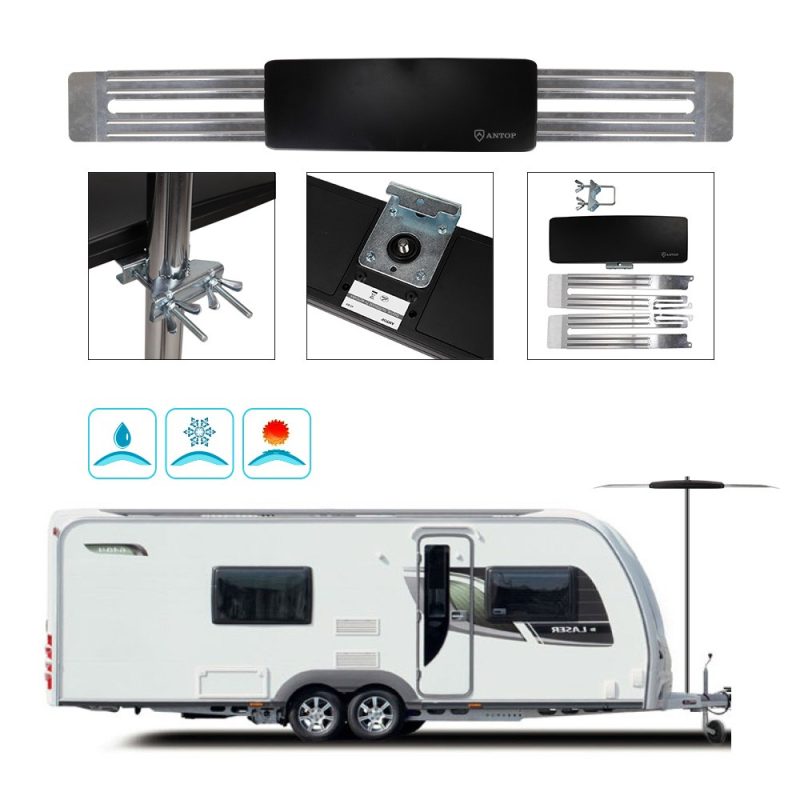

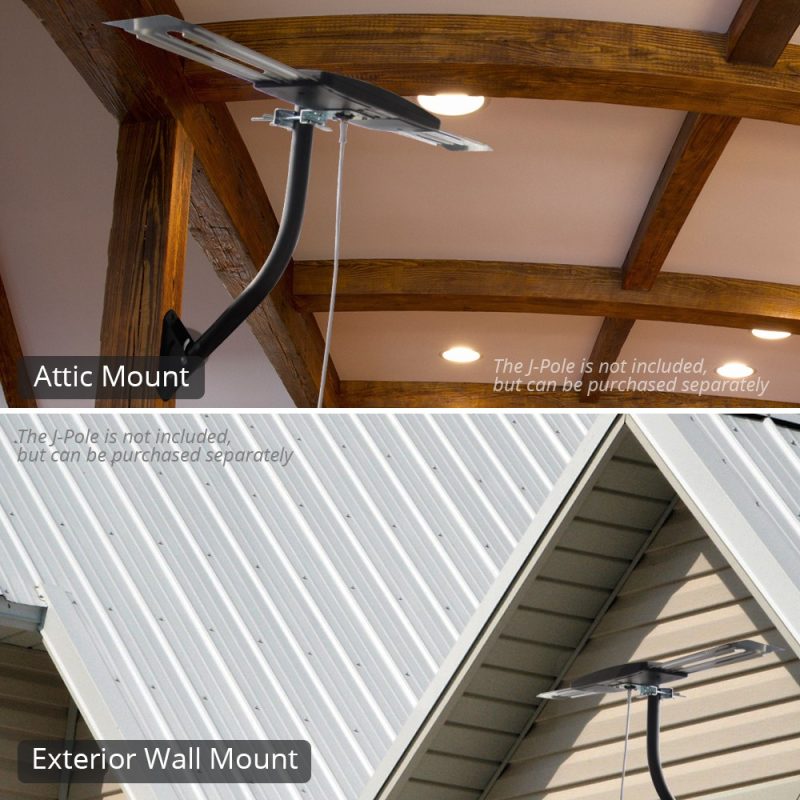

• Easy home exterior installation: wall, roof, balcony
• Size: 35.06 x 4.65 x 1.38 inches
Introduction

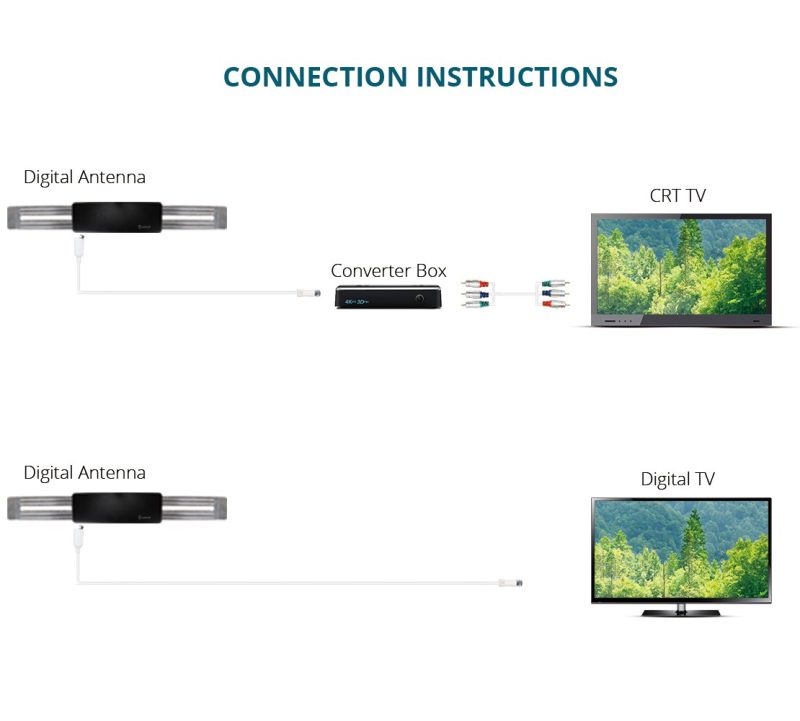

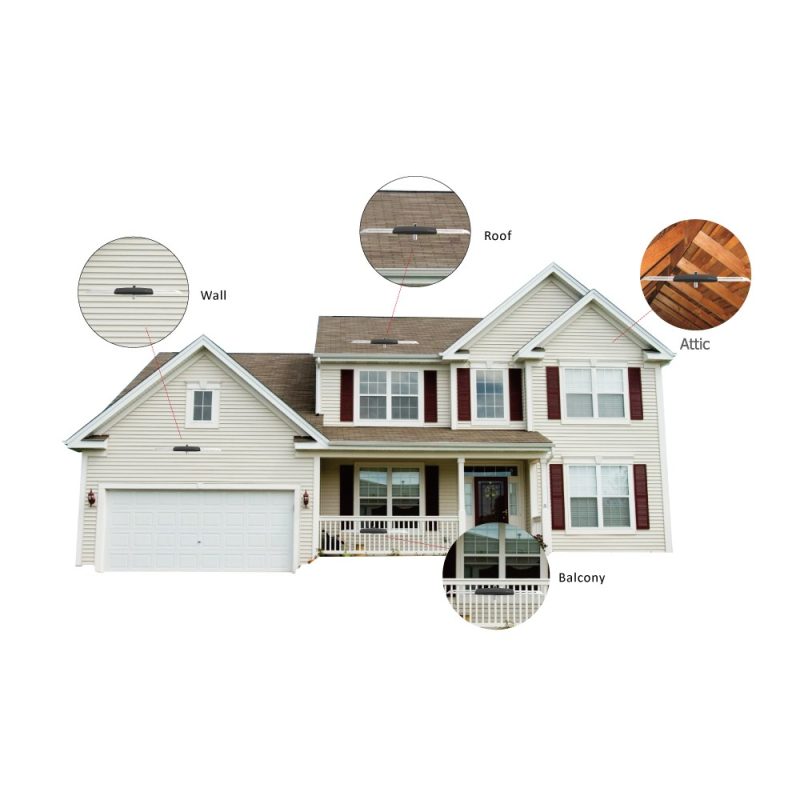

The Antop outdoor HDTV antenna Wing AT-404 design is aesthetically pleasing and suitable to match a wide range of home exterior styles. The Multi-directional reception, UV coating and weather resistant finish and creative design, allow you to install your AT-404 antenna in various locations around the exterior of your home: wall, roof, balcony. It is also suitable for indoor use in an attic. The AT-404 supports HDTV, 1080P TV and 4K ULTRA HD and is compatible with TV converter boxes or digital TVs.
The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area. With the Antop AT-404, there is no monthly fee and no need to subscribe. Just plug into a TV, scan the channels, and then enjoy your TV shows!
Antop’s New Generation Digital Technology
1) High Gain reception technology, shielded for minimum interference.
2) Durable exterior, waterproof design with UV coating.
3) Supports VHF & UHF digital signals.
4) Mounting accessory options.
By following the simple tips below, you can enjoy FREE TV with your Antop Antenna:
– Re-scan the channels after each switching of the Smart Switch.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high power consumption devices to avoid interference.
NOTE: Antenna effectiveness is influenced by the distance from signal origination point, station signal strength, antenna positioning, reflections from nearby structures and any power consumption sources. THE AMOUNT OF FREE OVER-THE-AIR CHANNELS YOU CAN RECEIVE WILL VARY BY AREA AND ANTENNA SELECTION, CHECK SIGNAL AVAILABILITY AT Antop Signalmaps.

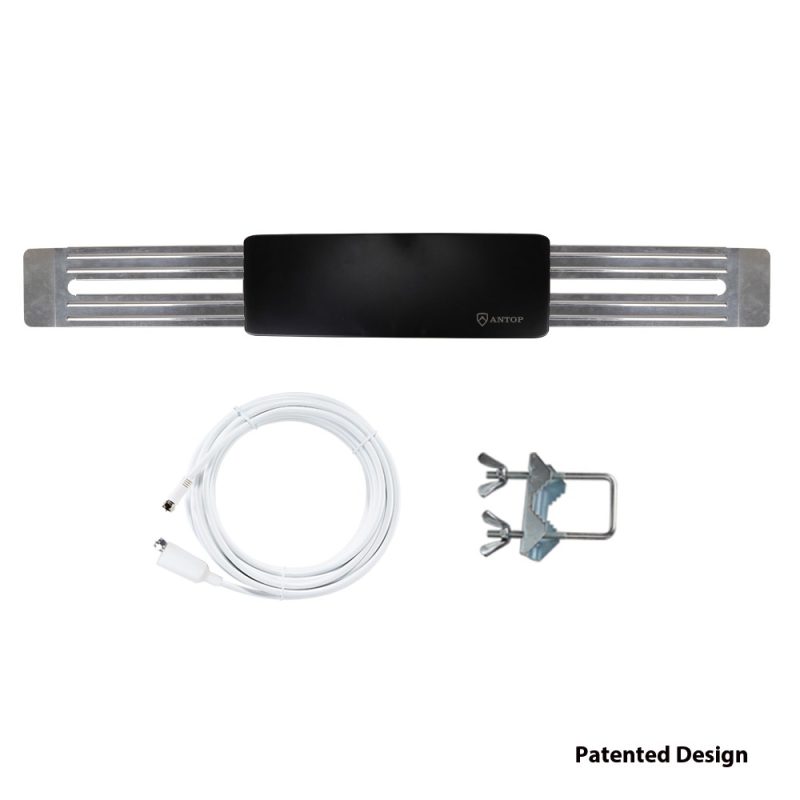

What’s in the box
– AT-404 WING Outdoor HDTV Antenna
– 33ft Coaxial Cable
– Wall/Pole Mounting Kit
– Instruction/User Manual
– Instrucciones de Instalación en Español
Specification | |
| Usage | Outdoor, Attic, RV |
|---|---|
| Signal Strength | Moderate Signal Areas |
| Received Band | HI-V, LO-V, UHF |
| Amplification | Non Amplified |
| Frequency Range | 87.5-230MHz, 470-700MHz |
| Gain | Switch OFF: 12.5dB; Switch ON: 29dB |
| Max Output level | 100dBuV |
| Noise Figure | ＜5dB |
| Impedance | 75Ω |
| Power Supply | Not Necessary |
| Cable Length | 39ft |
| Product Series | Wing/Butterfly |
| Working Temperature Range | -104 to 140 ℉ |
| Wind Figures | 6 mile/h = 0.10N ; 10 mile/h = 0.36N |
| Color | White |
| UPC | 856134006148 |
Consumer Packaging | |
| Weight | 3.1 lbs |
|---|---|
| Dimensions | 5.43 × 2.48 × 22.83 in |
