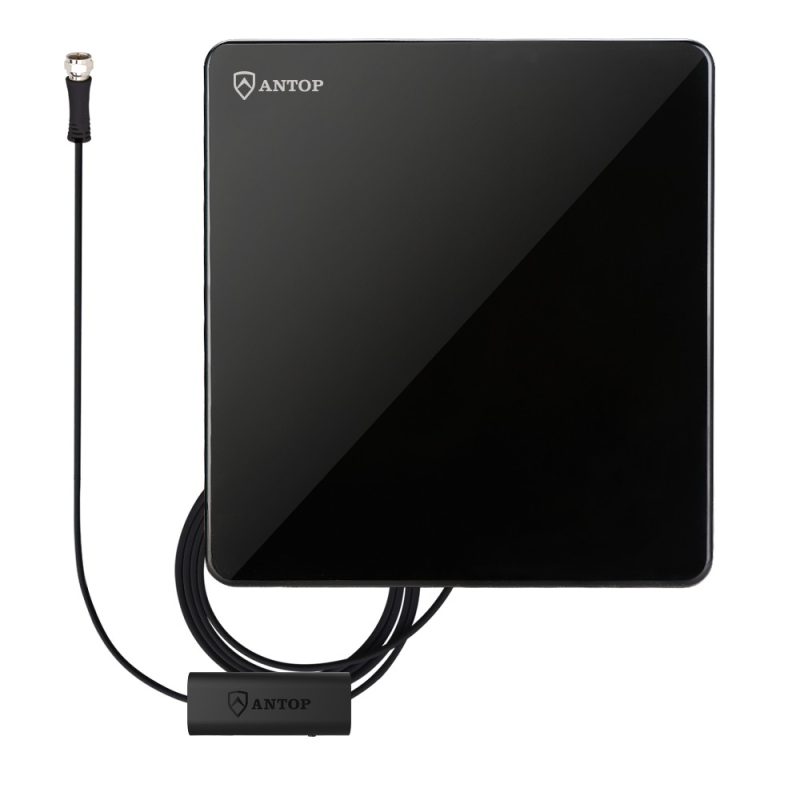

ANTOP Flat-Panel AT-206B Indoor HDTV Antenna | Smartpass Amplified

$92.99 $44.99

  • Super Slim Panel as 0.30 inch
  • Glossy-black finish to match any sleek television
  • Smartpass technology amplifies range from 0, 40 to 50 miles
  • 4G LTE Filter: blocks unwanted 3G and 4G signals
  • Omni-directional reception for moderate signal strength areas

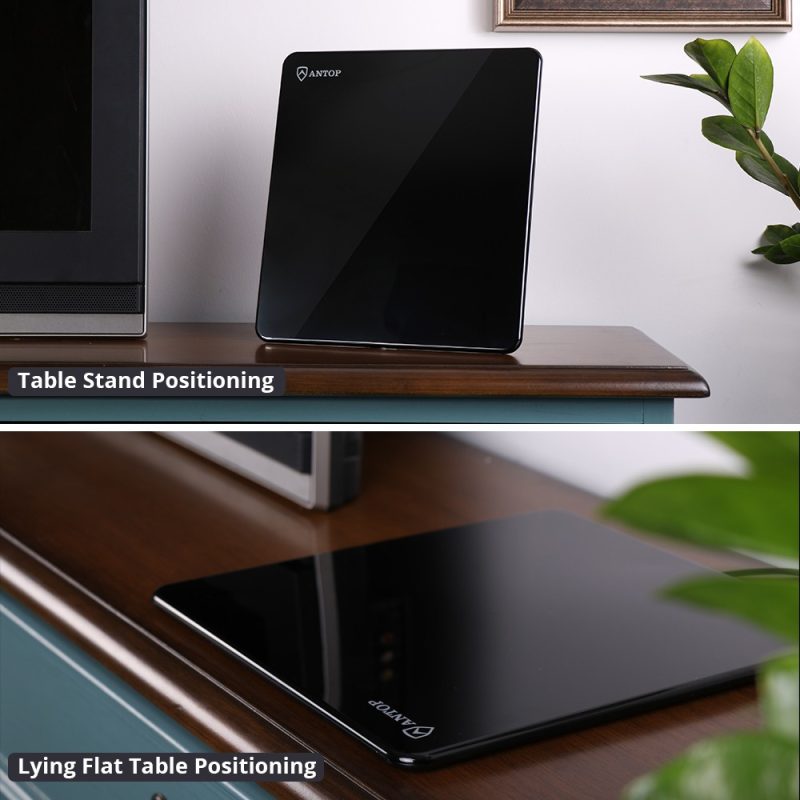

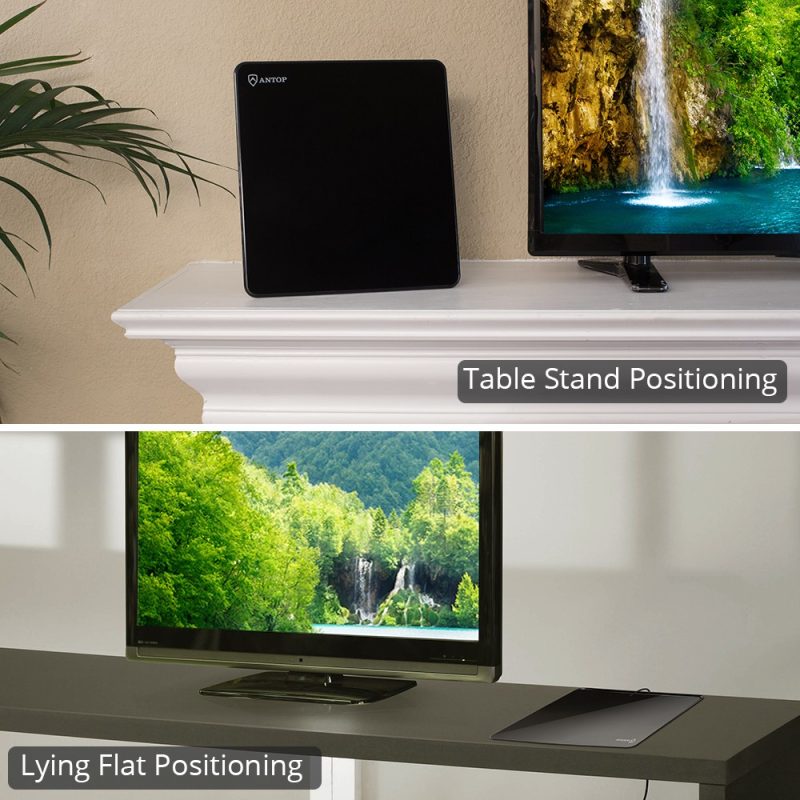

  • Multiple set-up options: table, wall, window
  • Compact size: 10.04 x 10.83 x .30 inch

Out of stock

Introduction

The ANTOP Flat-Panel AT-206B designed in Piano Black is aesthetically pleasing and suitable to match a wide range of home décor styles. Its compact size allows you to position the antenna anywhere in your home. The AT-206B supports HDTV, 1080P TV and 4K ULTRA HD and is compatible with TV converter boxes or digital TVs.

The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area. With the ANTOP AT-206B, there is no monthly fee and no need to subscribe. Just plug into a TV, scan the channels, and then enjoy your TV shows!

ANTOP Technology:

smartpass amplifier

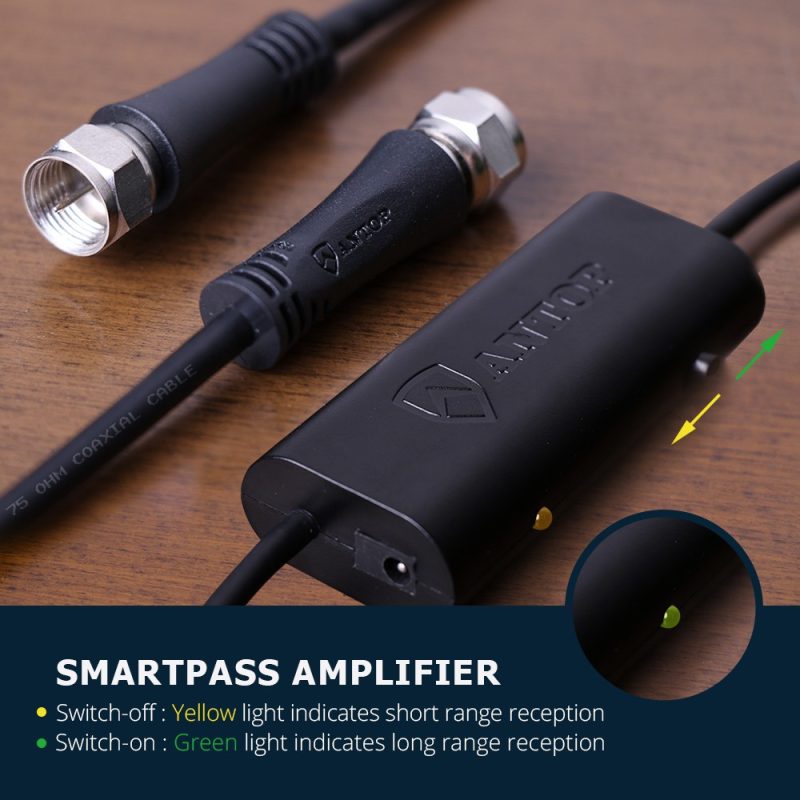

1) Smartpass Amplifier, exclusive ANTOP technology, balances reception range.

The Smartpass Amplifier‘s all-in-one design allows easier connection, delivers correct balance between short and long range reception. It must be powered in order to function. Push the smart switch On or Off and select the switching with which more channels are received.

2) 4G LTE Filter, blocks 3G and 4G wireless signals for noise-free digital reception.

ANTOP was the first antenna manufacturer to include a built in 4G LTE filter. This filter will block all 3G and 4G signals from mobile phones, tablets, wireless networks or mobile phone transmitters to ensure your noise-free digital TV reception.

4G LTE

By following the simple tips below, you can enjoy FREE TV with your ANTOP Antenna:

– Re-scan the channels after each switching of the Smartpass Amplifier.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high power consumption devices to avoid interference.

NOTE: Antenna effectiveness is influenced by the distance from signal origination point, station signal strength level, building construction, antenna positioning, reflections from nearby structures and any power consumption sources. The amount of free over-the-air channels you can receive will vary by area and antenna selection, check signal availability at ANTOP Signalmaps.

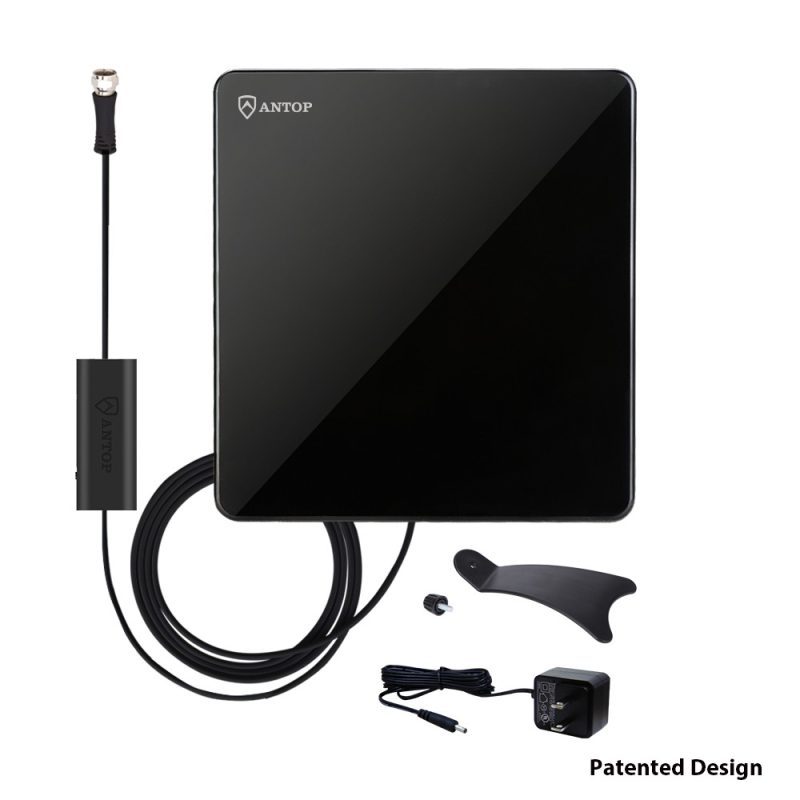

What’s in the box– AT-206B FLAT PANEL Smartpass Amplified Digital Indoor Antenna
– AC/DC Power Adapter

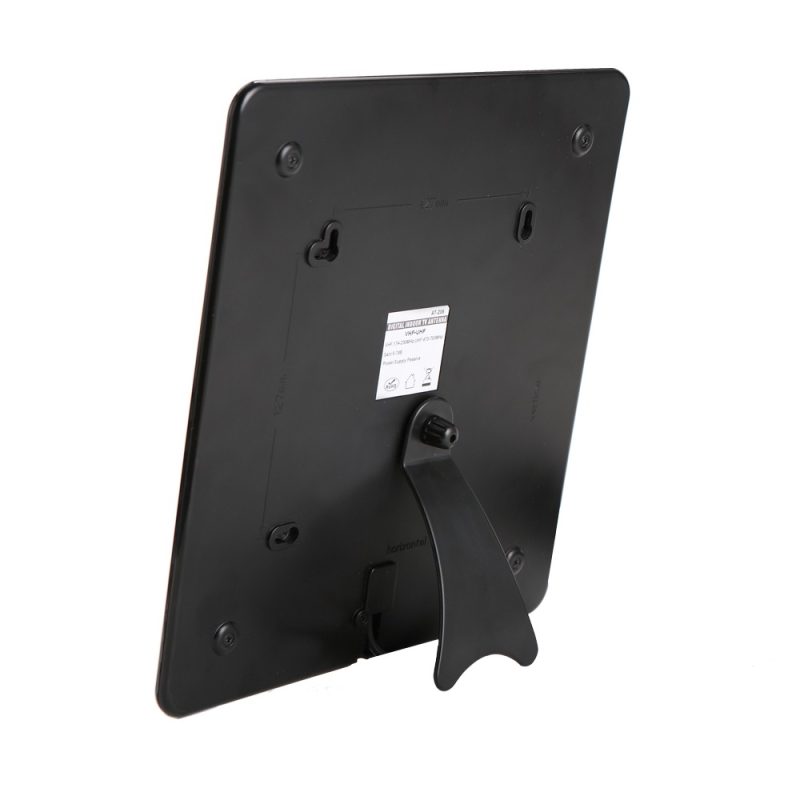

– Stand

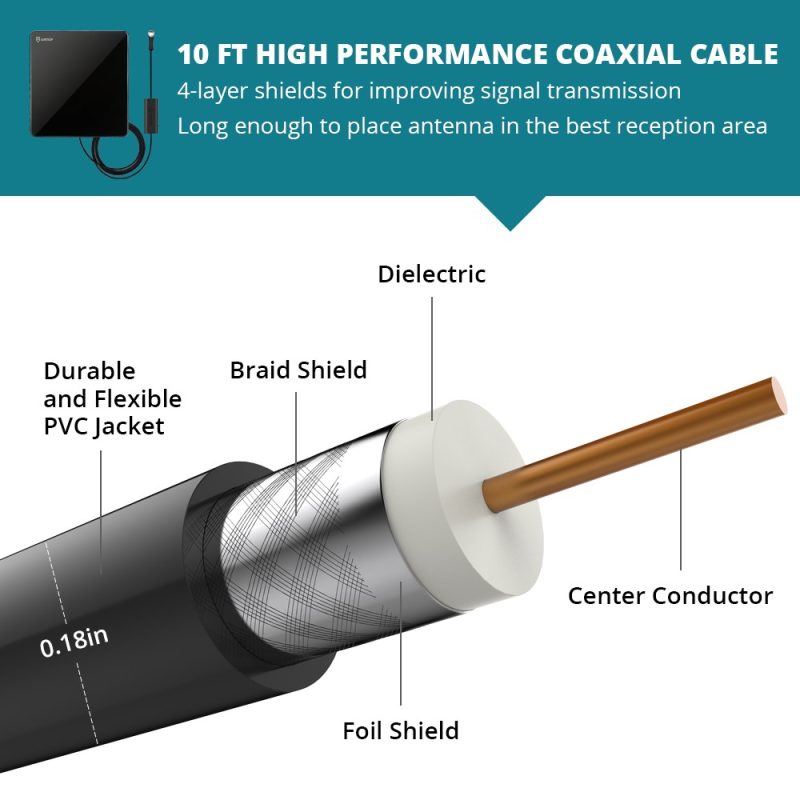

– 10ft Coaxial Cable
– Instruction/User Manual

Specification
Usage

Indoor, Apartment, Flat, Condominium

Signal Strength

Moderate Signal Areas

Received Band

HI-V, UHF

Amplification

Smartpass Amplified

Reception Pattern

Omni-directional

Frequency Range

174-230MHz, 470-700MHz

Gain

6-8dB or 19dB Max

Max Output level

100dBuV

Noise Figure

≤2dB

Impedance

75Ω

Power Supply

DC5V via power adapter

Cable Length

10ft

Product Series

Panel

Working Temperature Range

-68 to 140 ℉

Color

Black

UPC

856134006193

Packing
Weight 1.77 lbs
Dimensions 11.2 × 2.2 × 12 in
ANTOP User Manual
