PRO-LINE UFO PL-414BG HDTV Outdoor/Attic/RV Antenna | Amplified

$70.69

• New Generation digital tech design: matches mechanical antennas
• UV coating, weather resistant finish
• Amplifies range up to 65 miles
• 4G LTE Filter: blocks unwanted 3G and 4G signals
• Omni-directional reception for weak/moderate signal strength areas

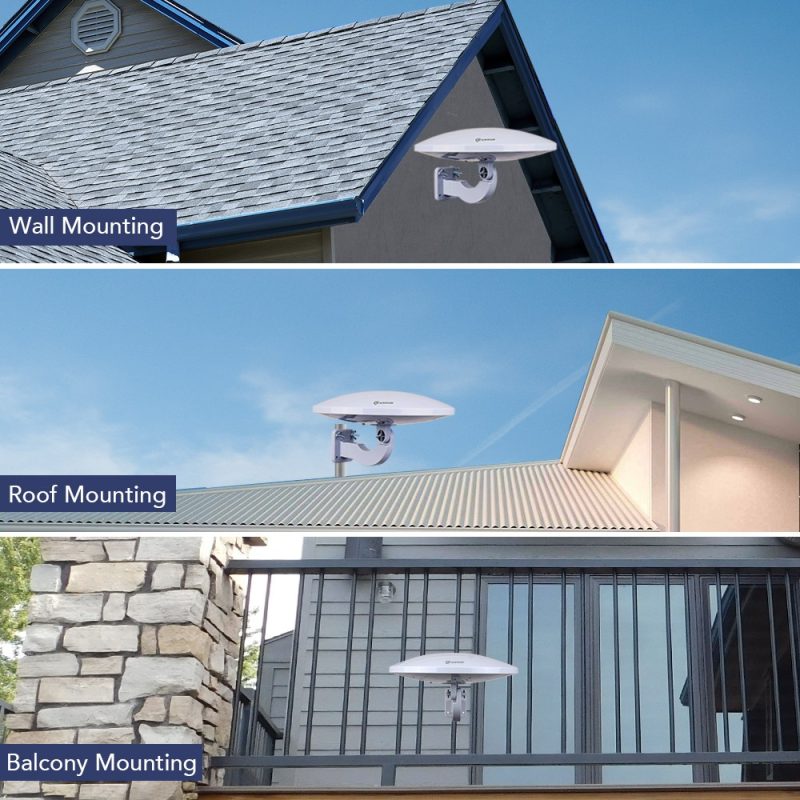

• Easy home exterior installation: wall, roof, balcony
• Size: 15-inch diameter

Product Status: New

Introduction

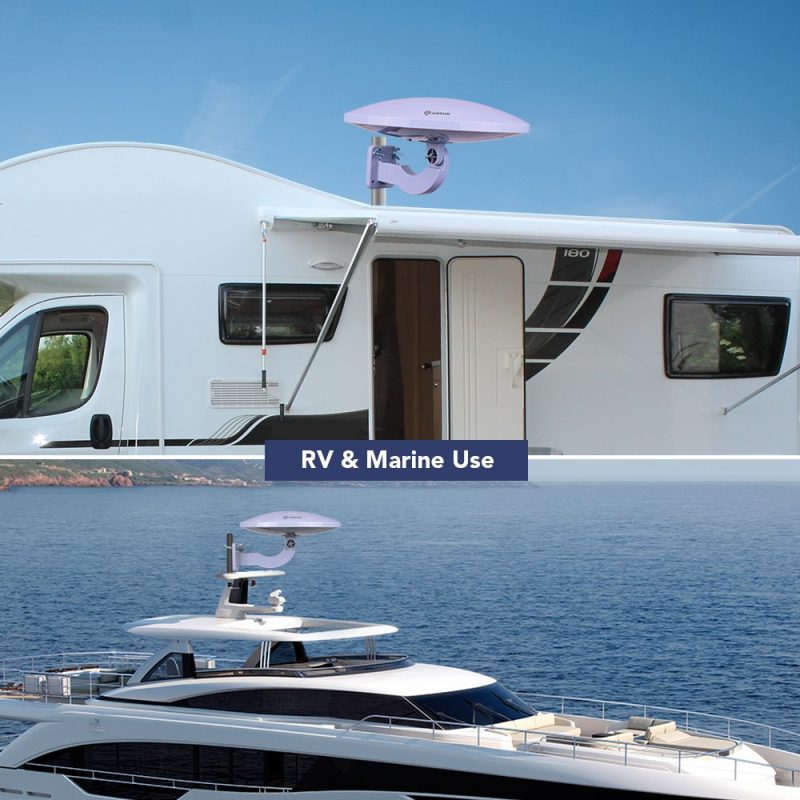

The Antop UFO PL-414BG, an omni-directional TV antenna, designed as house TV antenna and RV TV antenna with High Gain reception, amplified range of 65 miles from broadcast origination source! Assuring you more channel reception and less blind spots. Its UV coating and weather resistant finish and creative UFO design, allow you to install your PL-414BG antenna in various locations around the exterior of your home: wall, roof, balcony. It is also suitable for RV and mobile home use. The PL-414BG supports HDTV, 1080P TV and 4K ULTRA HD and is compatible with TV converter boxes or digital TVs.

Antop’s New Generation Digital Technology

1) The Smartpass Amplifier’s all-in-one design allows easier connection, delivers correct balance between short and long range reception. It must be powered in order to function. Push the smart switch On or Off and select the switching with which more channels are received.
2) 4G LTE Filter: built into all Antop amplified antennas, blocks 3G and 4G wireless signals for noise-free digital reception.
3) High Gain reception technology, shielded for minimum interference.
4) Durable exterior, waterproof design with UV coating.
5) Supports VHF & UHF digital signals.
6) Mounting accessory options.

By following the simple tips below, you can enjoy FREE TV with your Antop Antenna:
– Re-scan the channels after each switching of the Switch.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high power consumption devices to avoid interference.

NOTE: Antenna effectiveness is influenced by the distance from signal origination point, station signal strength level, building construction, antenna positioning, reflections from nearby structures and any power consumption sources. The amount of free over-the-air channels you can receive will vary by area and antenna selection, check signal availability at Antop Signalmaps.

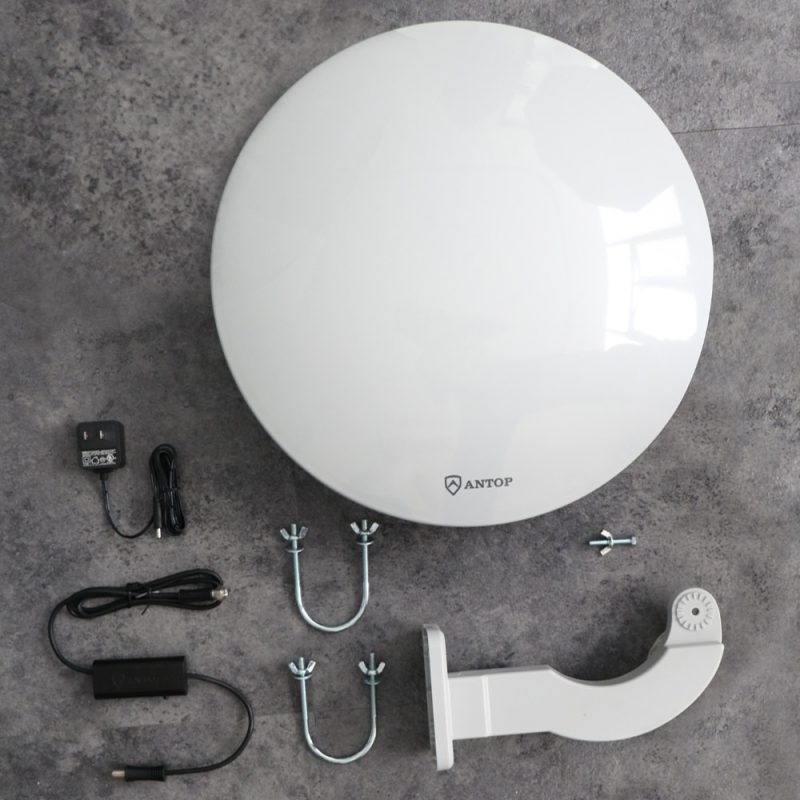

What’s in the box

– PL-414BG UFO Amplified Outdoor HDTV Antenna
– AC/DC Power Adapter
– Power Inserter
– Outdoor Bracket
– Mast Clamp Kit
– Instruction/User Manual
– Instrucciones de Instalación en Español

Specification
Usage

Outdoor, Attic, RV, Marine

Signal Strength

Moderate Signal Areas

Reception Pattern

Omni-directional

Amplification

Amplified

Frequency Range

174-230MHz, 470-700MHz

Gain

28dB or 30dB

Max Output level

102dBuV

Noise Figure

<5dB

Impedance

75Ω

Product Series

Pro-Line

Color

Grey

Product Status

New

Wind Figures

6 mile/h = 0.23N ; 10 mile/h = 0.83N

Working Temperature Range

-104 to 140 ℉

UPC

853042007229

Consumer Packaging
Weight 4.34 lbs
Dimensions 15.15 × 5.9 × 15.35 in
ANTOP User Manual
