Antop AT-601B Smartpass Amplifier Kit – Black

$22.69

Compatible with All Passive Antennas
Color: Black
Frequency Range: 87.5-700MHz
Receiving Range: FM/VHF/UHF
Gain: 16dB Max
Output level: 105dBuV Max
Impedance: 75Ω
Noise figure: ≤2dB
Return Loss: >8
Power Supply: DC5V/50mA

Color: Black
Product Status:
Buy On Amazon
SKU: AT-601B Category: Tags: ,

lifestyleOverview

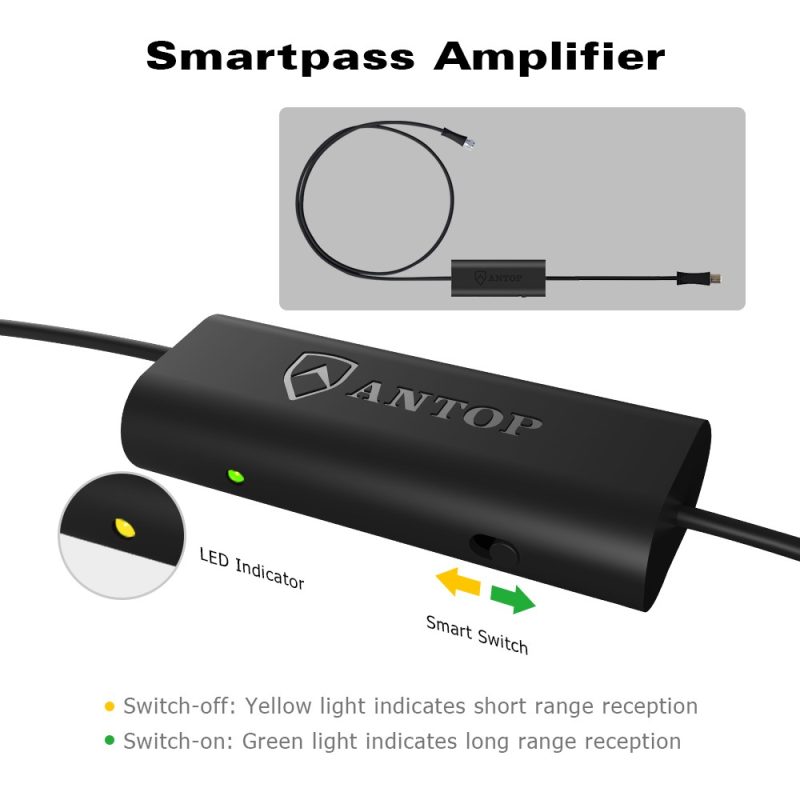

Works with any non-amplified/passive TV antenna. High gain is designed to amplify VHF and UHF SIGNALS with a LOW NOISE level, less than 2dB. Dual-color indicator, Green for long reception and Yellow for short reception. 3ft and 0.3ft EXTENSION COAXIAL CABLES are attached at either end for easy connection. AT-601B(Black) must be powered to function. Unit can be powered via the included USB cable by connecting to any USB power adapter supporting 5V output on USB-port.
Engineered and designed in the USA by Antop, the antenna specialists, the Antop SMARTPASS AMPLIFIER features a SMART SWITCH to balance the amplification between short and long range signals received by the antenna. The Smart Switch is recommended to be switched ON to boost weaker signal level reception, and switched OFF to avoid amplification overload for stronger signal reception. The SMARTPASS AMPLIFIER is not recommended for use with an amplified antenna.

Introduction

The Antop Smartpass Amplifier, AT-601B,is designed to work with any non-amplified/pass antenna to boost the over-the-air TV signal received by the antenna. The attached 3ft and 0.3ft extension coaxial cables at either end offer connection flexibility and enable you to move the antenna within a wider placement range for better reception. The AT-601B supports over-the-air TV signals including HDTV, 1080P TV and 4K ULTRA HD.

Antop’s Technology

smartpass amplifierSmartpass Amplifier, exclusive Antop technology, balances reception range.

1) The Smartpass Amplifier’s all-in-one design, allows you an easier connection and more possibilities in different receiving ranges. You don’t have to hesitate any more on deciding between a short range and long range antenna! Antop’s Smartpass Amplifier delivers the correct range for you.
2) 4G LTE FILTER, blocks 3G and 4G signals from mobile phones, tablets, wireless networks or mobile phone transmitters to ensure a noise-free digital TV reception.

Tips:

– AT-601B must be powered for function. It can be powered via USB cable by connecting to any USB-port supporting 5V output. A USB AC/DC power adapter is included in package.
– Re-scan the channels after each switching of the Smartpass Amplifier.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the Smartpass Amplifier in/behind any metallic objects.
– Keep the antenna away from any high power consumption devices to avoid interference.

NOTE: When using the SMARTPASS AMPLIFIER with any non-amplified antenna, note that antenna effectiveness is also influenced by its distance from the signal origination point, station signal strength level, building construction, antenna positioning, reflections from nearby structures and any power consumption sources. THE AMOUNT OF FREE OVER-THE-AIR CHANNELS YOU CAN RECEIVE WILL VARY BY AREA AND ANTENNA SELECTION, CHECK SIGNAL AVAILABILITY AT Antop Signalmaps.

What’s in the box

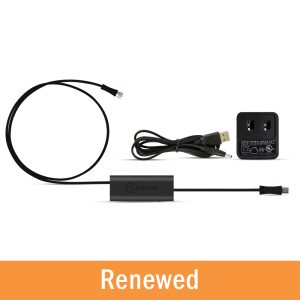

– AT-601B Smartpass Amplifier and Power Supply Kit
– USB AC/DC Power Adapter
– USB Cable
– Instruction/User Manual

Specification
Usage

Indoor

Frequency Range

87.5-700MHz

Gain

16dB Max

Max Output level

105dBuV

Noise Figure

≤2dB

Return Loss

>8dB (5-1000MHz)

Power Supply

DC5V via USB

Cable Length

5ft

Color

Black

Product Series

Amplifiers

UPC

856134006292

Consumer Packaging
Weight 0.34 lbs
Dimensions 2.56 × 2.16 × 5.12 in
ANTOP User Manual
Customer Reviews

5 out of 5 stars

10 reviews

Let us know what you think...

What others are saying
  1. Jenny

    Jenny

    The unit was easy to install and the filtering worked fine. It eliminates interference to provide a quality signal without interference.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. William

    William

    I hooked it up and it did get me more stations .Now I’m picking up channels such as NBC which use to come in-and-out with the picture breaking up constantly, now come in crystal clear. The channels that I usually picked up now come in a little sharper and clearer. I it with no depreciation in picture quality. This booster works much better than the booster that came with my TV antenna.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Carlos

    Carlos

    One of my previous power cords was broken. Later, a friend recommended it and gave it to me to try it out. With the mentality of giving it a try, I installed it according to the instructions in the manual. Once it was connected, the picture became much clearer in an instant.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  4. Joanna

    Joanna

    I have an Antop outdoor antenna and I am running three TV’s off one signal. The TV in another part of the house was a long line away so the signal needed a boost. Easy installation: smart pass amplifier must be powered to function. With this unit I was able to get all the channels my area.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  5. Peter Rogan

    Peter Rogan

    The installation instructions are handy, and the noise-free digital TV reception is great!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  6. Joseph

    Joseph

    I put this in my attic and I was able to get stations 80 miles away. Running two tvs off of it through a splitter.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  7. ne

    ne

    purchased for use in rv, hope it works better than the rv antenna.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  8. Terri ,

    Terri ,

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  9. nick

    nick

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  10. Chevy Suv

    Antop Gets An A+

    Chevy Suv

    I have a somewhat unique, attic-mounted, two antenna system that without an amplifier can pick up 15 channels that I watch. Over about a two month period, I tried four different amplifiers, all much higher priced than the Antop Smartpass Amplifier, but I was not successful with getting channels I knew I should be able to get. Then I found the Antop Smartpass Amplifier. The installation was simple and took about five minutes. I ran a channel scan and ended up with 29 channels that I will watch. On average, the signal-to-noise ratio with the Smartpass jumped from about 25 to about 43! The very low noise figure of the Smartpass adds to the stability of the signal also. Overall, this is an extremely good amplifier, with a low noise figure, and an incredible price point.
