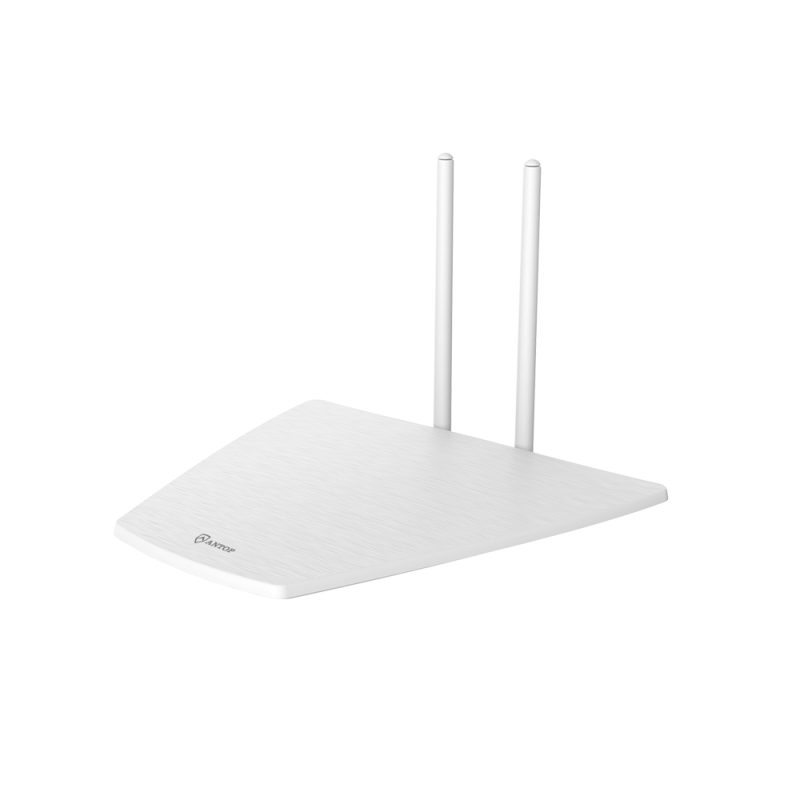

Antop AT-221BV White Aero + Amplified Indoor HDTV Antenna
The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area. With the ANTOP AT-221BV, there is no monthly fee and no need to subscribe. Just plug into a TV, scan the channels, and then enjoy your TV shows!

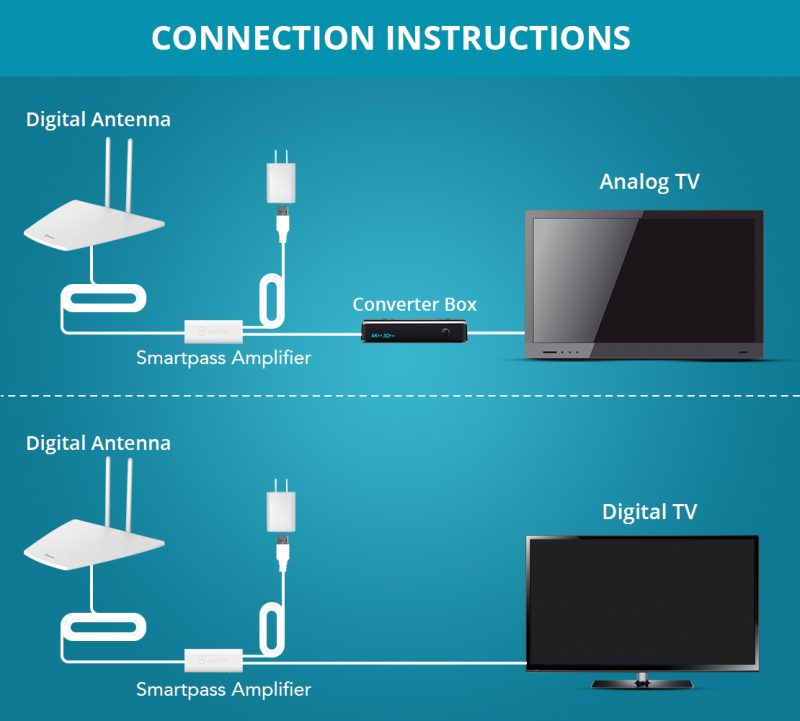

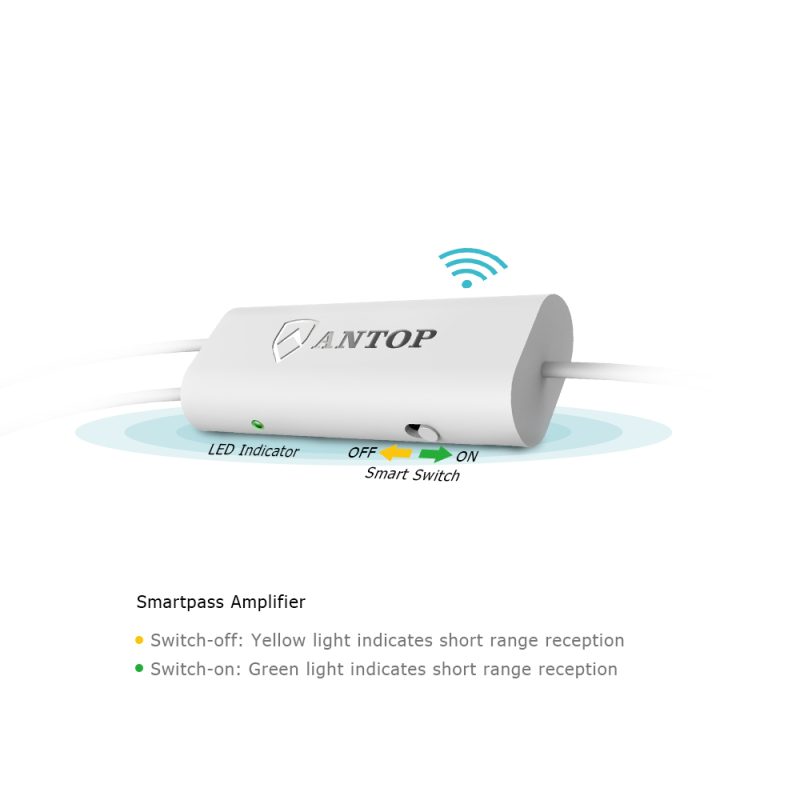

• Smartpass Amplifier, exclusive ANTOP technology, uses an all-in-one design allowing easier connection while delivering the correct balance between short- and long-range reception.

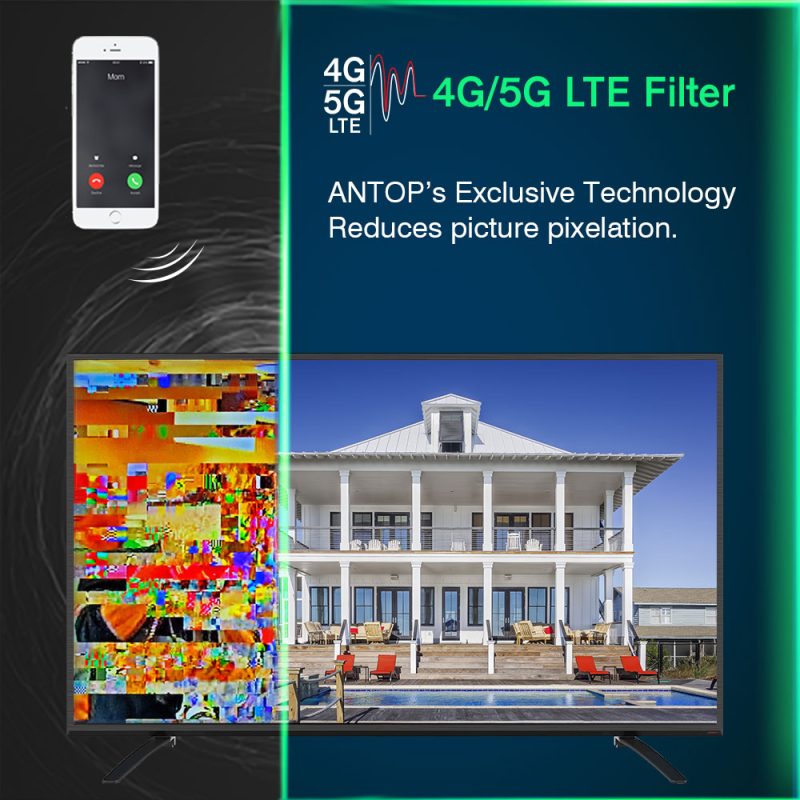

• 4G LTE Filter built into all ANTOP amplified antennas, blocks 4G and 5G wireless signals for noise-free digital reception.
• High Gain reception technology, shielded for minimum interference.

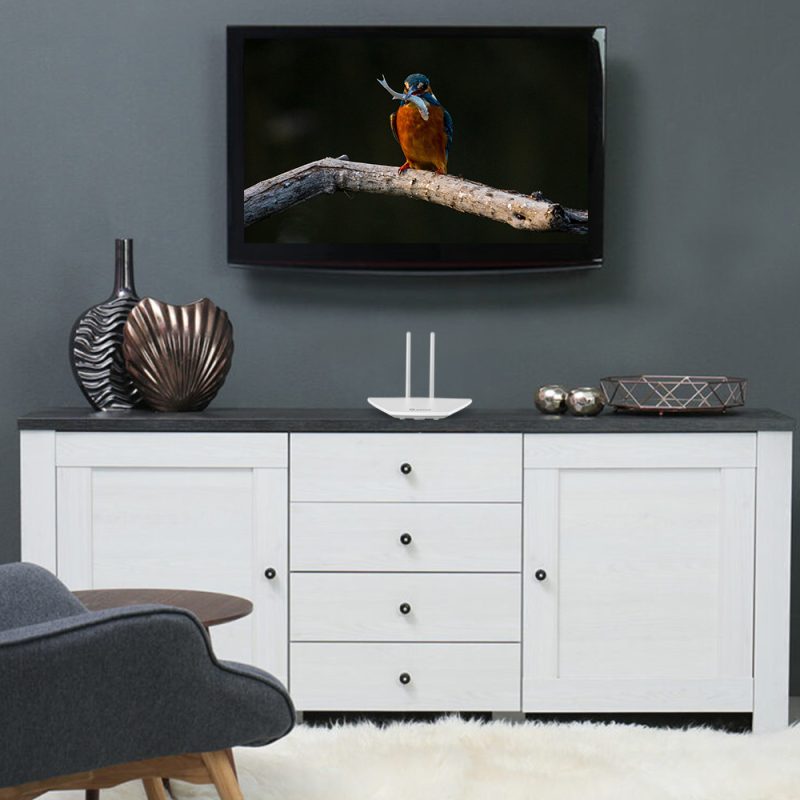

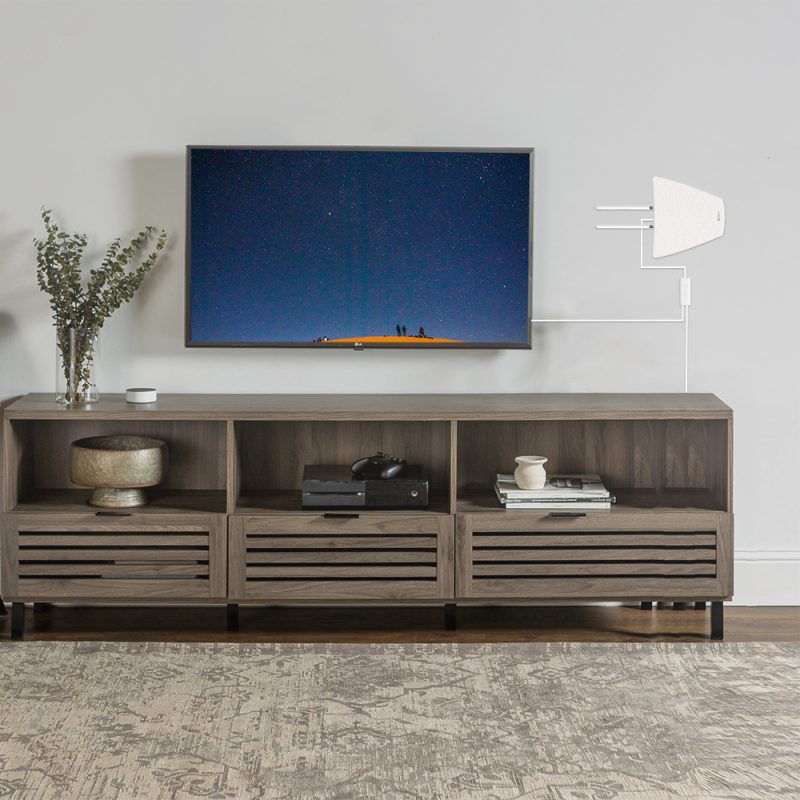

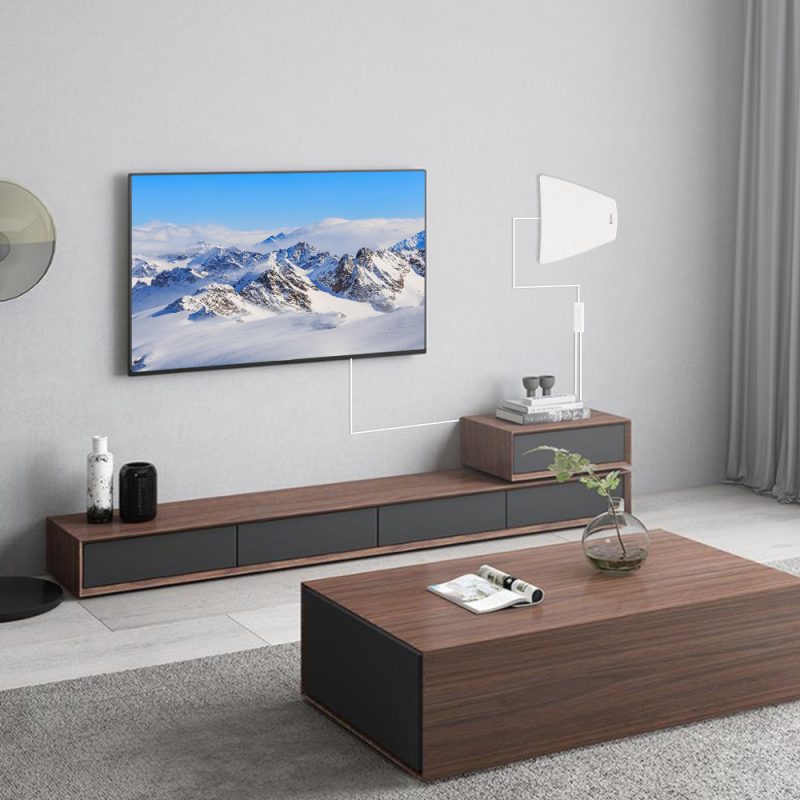

• Modern design with multiple installation options.
• Supports VHF & UHF digital signals.
– Re-scan the channels after each switching of the Smart Switch.
– Scan channels monthly to find all available channels including newly added or changed.
– Do not place or hide the antenna in/behind any metallic objects.
– Install the antenna as high as possible and near a window for better reception.
– Keep the antenna away from any high-power consumption devices to avoid interference.
• Usage: Indoor

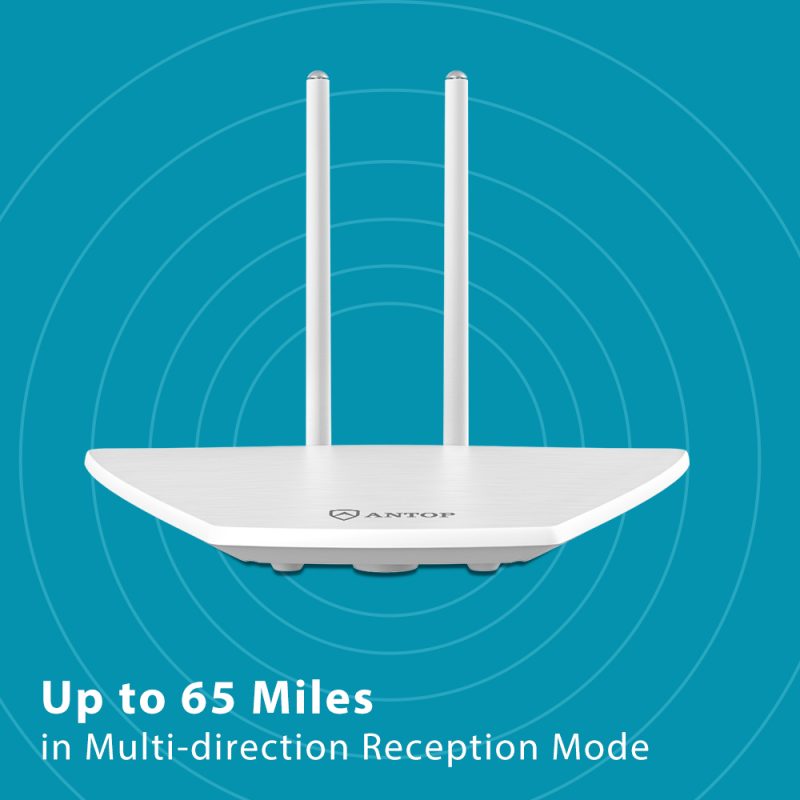

• Mileage: 55 to 65 miles from point of signal origination
• Receiving RF Band: Lo-V, Hi-V, UHF
• Frequency Range: 87.5-230MHz, 470-700MHz
• Reception Pattern: Multi-directional
• Polarization: Horizontal/Vertical
• Amplification Type: Smartpass Amplified

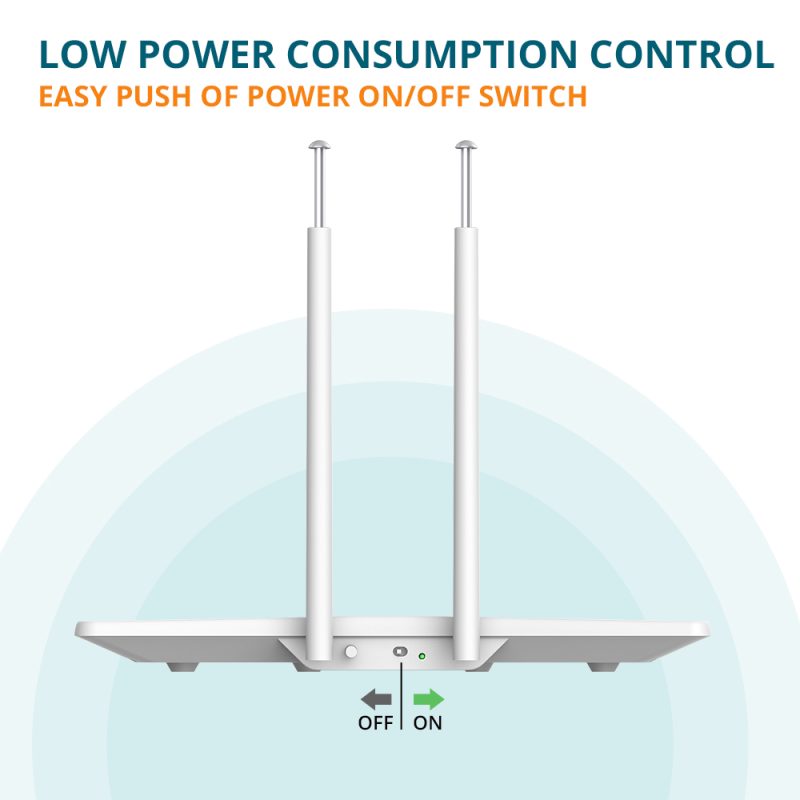

• Gain: Switch-Off: 15dB; Switch-On: 25dB
• Noise figure: ≤2dB
• Max Output Level: 100dBμV
• Impedance: 75Ω
• Working Temperature Range: -104 to 140 °F
• Power Supply: DC 5V via power adapter
• Color Options: White/Black/Titanium/ Marble

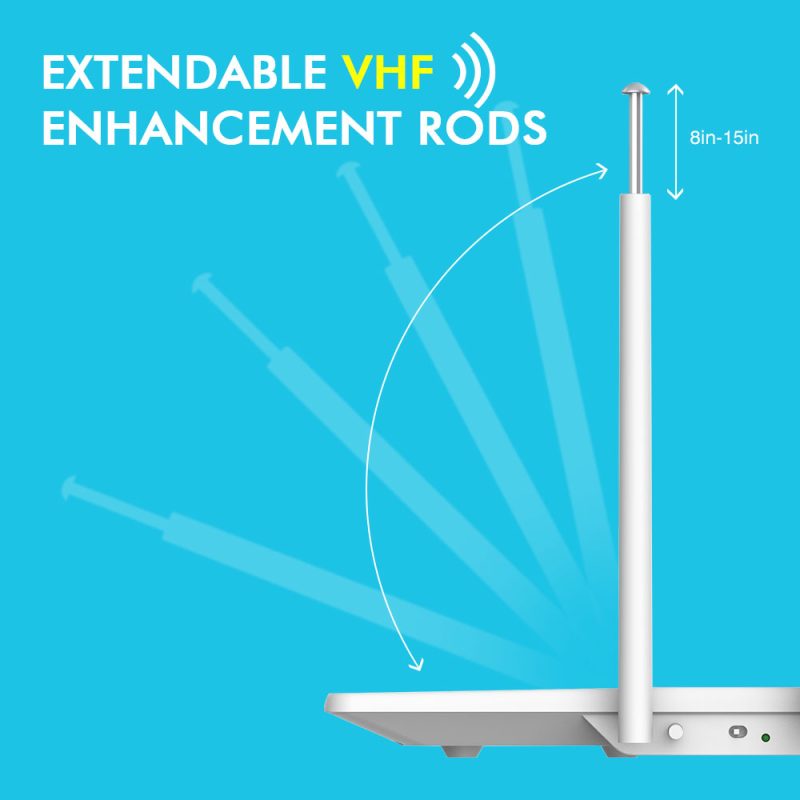

• VHF Enhancement Rods: Extendable from 8in to 15in with Rotating Angle up to 90°
• Antenna Size: 12.00X 10.60 X 1.00 inches
• Coaxial Cable: 16ft

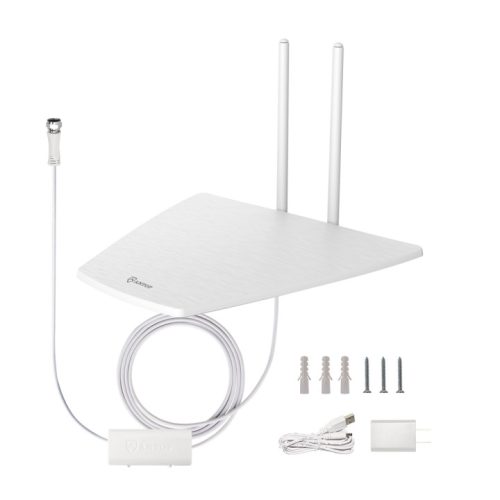

• AT-221BV Aero + Amplified Indoor HDTV Antenna
• AC/DC Power Adapter
• USB Cable
• 16ft Coaxial Cable
• Detachable and Extendable VHF Enhancement Rods
• Instruction/User Manual
• Instrucciones de Instalación en Español
55 to 65 miles
Moderate Signal Areas
HI-V, LO-V, UHF
Switch-Off: 15dB; Switch-On: 25dB
|Max Output level||
DC 5V via power adapter
|Working Temperature Range||
-104 to 140 ℉
|Dimensions||12 × 10.6 × 1 in|
