Antop Coaxial RG6 Cable AT-717 50ft/15m
$17.99
Heavy Duty Grade RG6 Cable
Durable and Flexible PVC Jacket
Double Shielded to Add Signal Strength
Reduces Unwanted Interference
Carries Both Audio and Video Signals
Suitable for Indoor and Outdoor Use
Product Description
Introduction

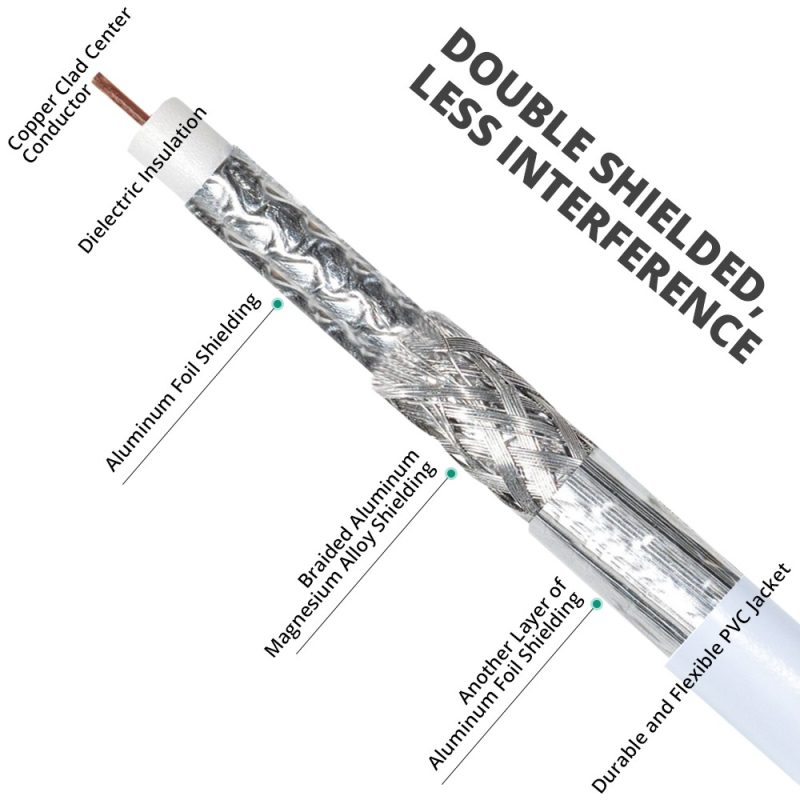

The Antop AT-717 50ft/15m Coaxial RG6 Cable can be used for Over the Air antennas, cable modems, satellite TV receivers and other coaxial F-male enabled devices connection, delivering clear picture and sound without electromagnetic & radio frequency interference. Featuring Zinc Alloy F-type connectors, this 75 OHM RG6 cable houses a copper clad center conductor, dielectric insulation and braided aluminum magnesium alloy shielding. This cable is suitable for both indoor & outdoor use.
Installation
Connect one end of the cable to any “F” type jack of audio/video source.
Connect the other end of cable to TV, HDTV, or A/V receiver.
Specification
Specification | |
| Usage | Indoor, Outdoor |
|---|---|
| RoHS Compliant | Yes |
| Impedance | 75 Ω ± 5 Ω |
| Attenuation | 2.64dB(55MHz), 3.96dB(250MHz), 5.88dB(550MHz), 6.78dB(750MHz), 7.86dB(1000MHz) |
| Return Loss | ＞10dB (5-1000MHz) |
| Cable Length | 50ft |
| Color | White |
| Product Series | Coaxial Cables |
| UPC | 856134006360 |
Consumer Packaging | |
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 8.07 × 6.10 × 1.57 in |
